FCW1084A
Wildlife Forward Throw Wedge with Amber Light

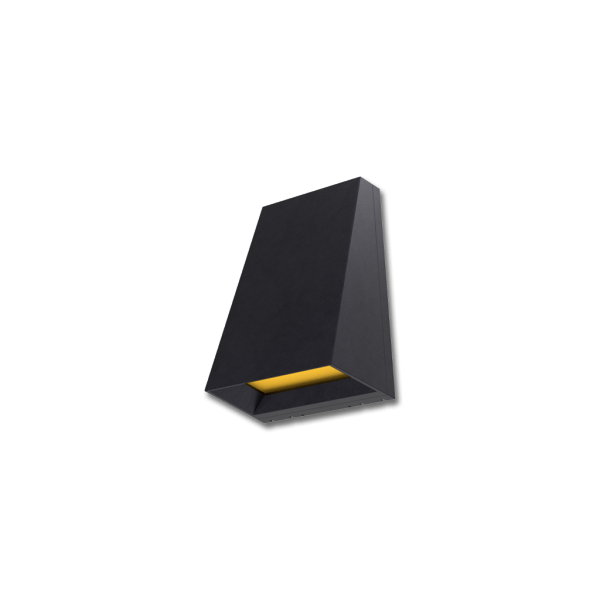

FCW1084A Exterior Wall Mount Luminaire is IP66 rated for wet locations in a down position. The Wildlife Friendly, amber LED trapezoidal, wedge shape design has a timeless, simplistic style and functions well as a exterior building down light, and also allowing weather elements to easily run off the luminaire. Applications include overhead entry lighting, illuminating building features, or building perimeter lighting. It's Amber LED has a 590-600 nanometer light wavelength range. The small footprint LED has Tri-Dim standard, and is offered with symmetrical and asymmetrical light patterns. FCW1084A down light is corrosion resistant heavy gauge aluminum. Die-formed and seam welded for solid construction. The lens is 1/8" thick, tempered glass for both the symmetrical and asymmetrical options. Neoprene continuous closed cell gasket seals out contaminants. Captive stainless steel, tamper resistant hex socket screws. Mounts directly to standard junction box. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. View all Exterior Surface products. View SSL Linear Outdoor Luminaires for facade down lights.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW1084A
FCW1084A
FCW1084A
FCW1084AFCW1084AFCW1084A

FEATURES & BENEFITS


Performance
140 lm ASY
228 lm SYM (18W Max) Amber

Control
TD Tri-Dim (UNV Only), (1%, 0-10V, 120-277V), (1%, TRIAC & ELV, 120V Only)

Mounting Options
Exterior or Interior Wall Mount

Power Input
UNV 120 - 277 VAC

Protection
IP66 Rated

Warranty
5-Year Limited Warranty
