FCBT690A

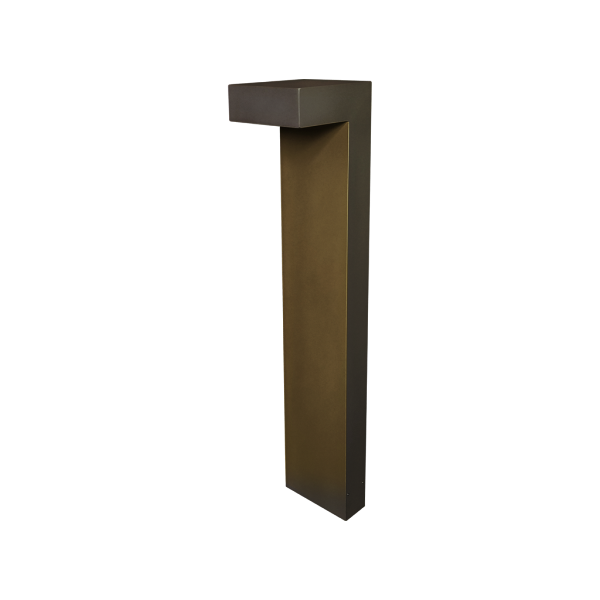

36" or 42"H Wildlife Aluminum Bollard with Amber Light
Using a minimum 560nm wavelength amber LED to preserve nature, the
FCBT690A
Amber Bollard is Marine grade, corrosion resistant, heavy walled aluminum. Tower body is extruded aluminum, 42-inch standard (specify custom height when ordering). Lens is clear, polycarbonate. Neoprene continuous closed cell gasket to seal out contaminants. Captive and recessed stainless steel, tamper resistant hex socket screws. Mounting insert sets base flush to surface. Base is anchored through with a set of four 12" length x 3/8" diameter hot dipped bolts. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.
IES
IES Downloads
FCBT690A_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCBT690_FCBT690Aii.pdf
Spec Sheet
Spec Sheet Downloads
FCBT690A.pdf
FEATURES & BENEFITS
Performance
500 lm (10.5W) Amber
Mounting Options
Base Bracket Mounting
Power Input
UNV 120 - 277 VAC
Protection
IP65 Rated
Warranty
5-Year Limited Warranty
