FCC813A

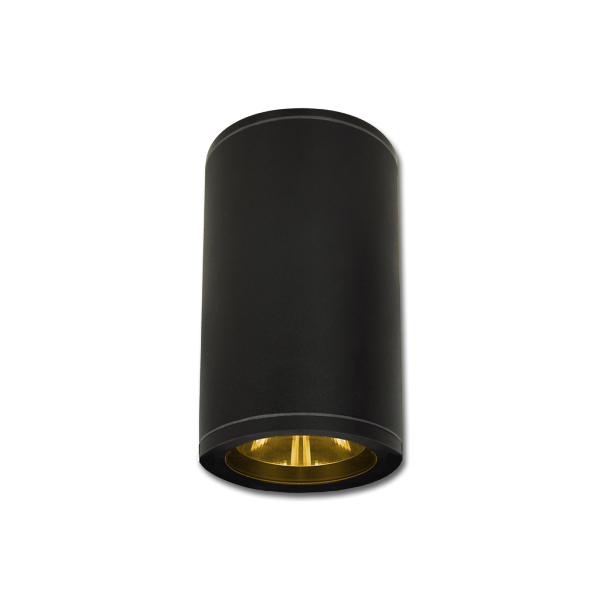

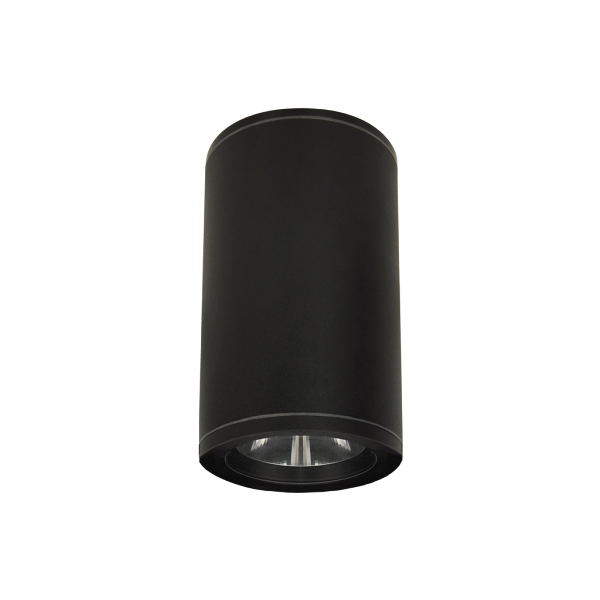

8" Wildlife Cylinder with Amber Down Light
The
FCC813A
exterior cylinder is U.L. listed for wet locations in down position with wildlife friendly amber LED. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Lens is 3/8" thick tempered, clear, heat resistant. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Optional wall or ceiling emergency test switch. FCC813A has a true AMBER LED option which uses AllnGaP chip technology to produce amber color with spectral control between 590-600nm above the 560nm required by Florida Fish & Wildlife Conservation Commission (FWC).
Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.
IES
IES Downloads
FCC813A_IES_Data.zip
Install Instructions
Install Instructions Downloads
Cylinders_SPMii.pdf
Cylinders_FC_WMii.pdf
Cylinders_Exterior_SFii.pdf
Spec Sheet
Spec Sheet Downloads
FCC813A.pdf
FEATURES & BENEFITS
Performance
350 lm (6.4W) Amber
Optic Beam Options
15°
Mounting Type
Surface
Pendant
Wall
Mounting Options
Surface, Wall, Slope Pendant Mounts
Power Input
UNV 120 - 277 VAC
Protection
IP65 Rated
Warranty
5-Year Limited Warranty
