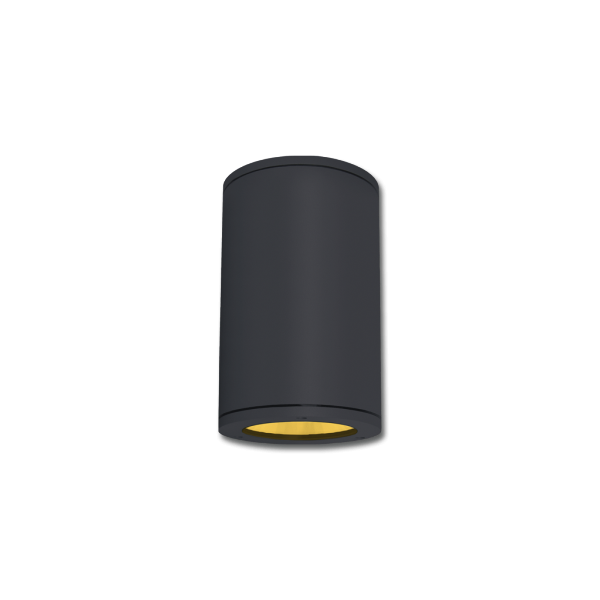

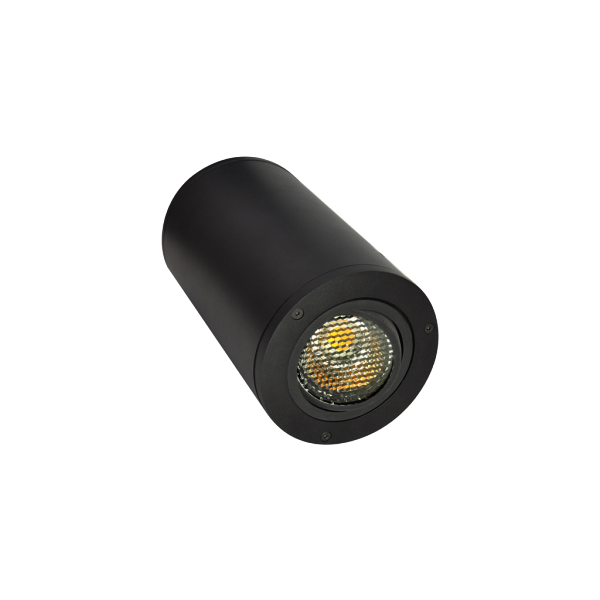

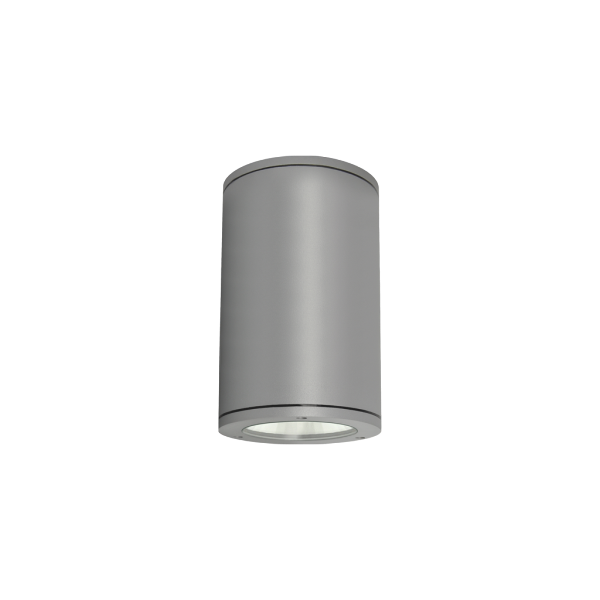

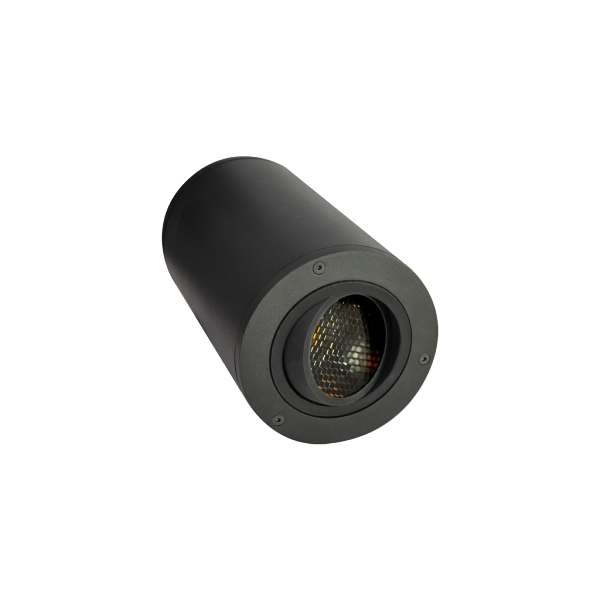

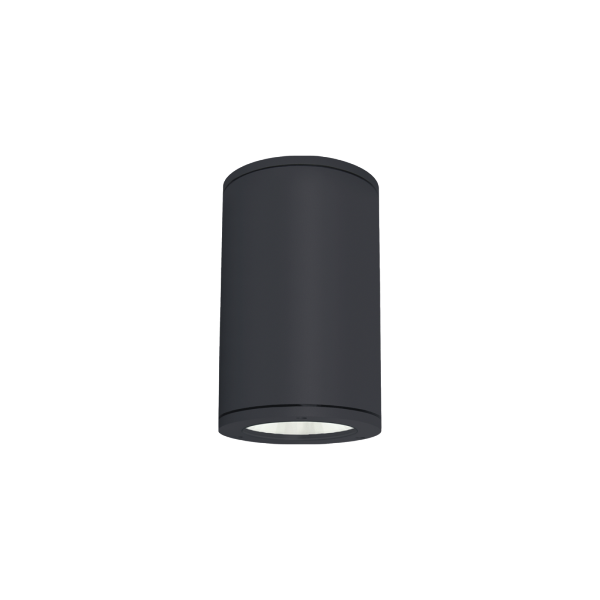

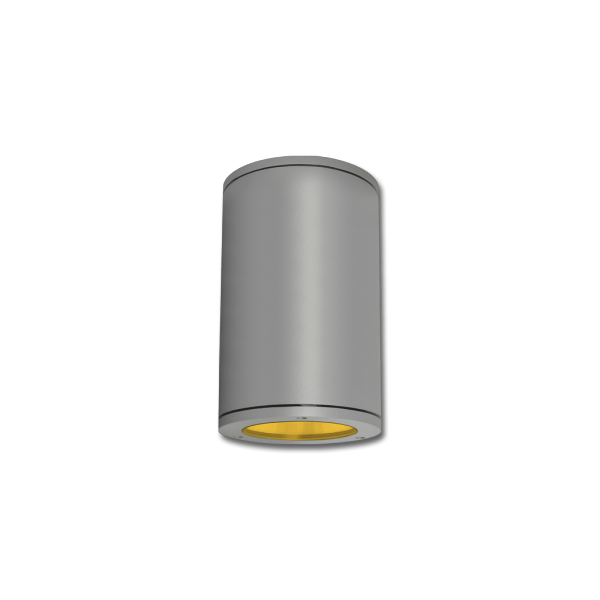

FCC610A
6" Wildlife Cylinder with Amber Down Light
The FCC610A cylinder is U.L. listed for wet locations in down position. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Lens is 3/8" thick tempered, clear, heat resistant. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Mounts directly to standard outlet box. Optional wall or ceiling emergency test switch, also available luminaire mounted. FCC610A has a true AMBER LED option which uses AllnGaP chip technology to produce amber color with spectral control between 590-600nm above the 560nm required by Florida Fish & Wildlife Conservation Commission (FWC). Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.
IES
IES Downloads
Install Instructions
Spec Sheet
Spec Sheet Downloads
FCC610A
FCC610A
FCC610A
FCC610A
FCC610A
FCC610A
FCC610AFCC610AFCC610AFCC610AFCC610AFCC610A

FEATURES & BENEFITS


Performance
439 lm (10W) Amber

Optic Beam Options
SP

Mounting Type
Surface
Pendant
Wall

Mounting Options
Surface, Wall, Slope Pendant Mounts

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
