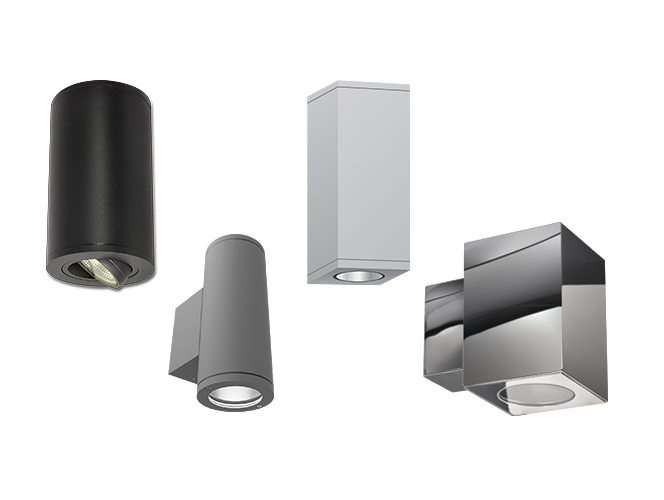

Exterior Cylinders



The Exterior Cylinders from FC Lighting feature simple, clean lines with an extensive range of colors, finishes and optical features available. This product family includes round and square shaped bodies with multiple widths & heights, satisfying the most distinctive architectural designs. Various mounting types, along with uplight, downlight or up/downlight applications can be specified. Numerous lumen packages and color temperature are available to suit your application and efficiency requirements.



• Are you Looking for Indoor cylinders? Click here to see our SSL brand cylinder offerings.


Selections:
4"
4in
FCC400 Down
4" Round Down Cylinder
500-3500 lm (46W Max.)
15°, 25°, 50°, 72°, 90°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
4.5"Dia x 10-20"H
4in
FCC400 WUD
4" Round Wall Up/Down Cylinder
500-3500 lm (46W Max.)
15°, 25°, 50°, 72°, 90°
Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
4.5"Dia x 10-20"H
Downloads
IES Downloads
icon
FCC400WUD_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCC400_WUD_Standard.pdf
icon
FCC400_WUD_Remote.pdf
4in
FCC400-RGBW
4" Round Down Cylinder
660 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Surface / Wall
UNV 120 - 277 VAC
IP65 Rated
4.5" Wide x 10-20" High
Downloads
IES Downloads
icon
FCC400-RGBW_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBWii.pdf
Spec Sheet Downloads
icon
FCC400_RGBW.pdf
4in
FCC400-RGBW-WUD
4" Round Wall Up/Down Cylinder
650 single direction lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Wall
UNV 120 - 277 VAC
IP65 Rated
4.5" Wide x 16-20" High
Downloads
IES Downloads
icon
FCC400-RGBW-WUD_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBW_WUDii.pdf
Spec Sheet Downloads
icon
FCC400_WUD_RGBW.pdf
4in
FCCSQ400 Down
4" Square Down Light Cylinders
3000 lm (35W Max.)
15°, 25°, 50°, 72°, 90°
Surface / Pendant / Wall
UNV 120 - 277 VAC
IP65 Rated
4.5"W x 10"-20"H
4in
FCCSQ400 WUD
4" Square Wall Up/Down Cylinders
500-4000 lm (43W Max.)
15°, 25°, 50°, 72°, 90°
Wall
UNV 120 - 277 VAC
IP65 Rated
4.5"W x 10"-20"H
Downloads
IES Downloads
icon
FCCSQ400WUD_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCCSQ400_WUD_Standard.pdf
icon
FCCSQ400_WUD_Remote.pdf
4in
FCCSQ400-RGBW
4" Square Down Cylinder
660 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Surface / Wall
UNV 120 - 277 VAC
IP65 Rated
4.5"W x 10"-20"H
Downloads
IES Downloads
icon
FCCSQ400-RGBW_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBWii.pdf
Spec Sheet Downloads
icon
FCCSQ400_RGBW.pdf
4in
FCCSQ400-RGBW-WUD
4" Square Wall Up/Down Cylinders
650 single direction lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Wall
UNV 120 - 277 VAC
IP65 Rated
4.5" Wide x 16-20" High
Downloads
IES Downloads
icon
FCCSQ400-RGBW-WUD_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBW_WUDii.pdf
Spec Sheet Downloads
icon
FCCSQ400_WUD_RGBW.pdf
6"
6in
FCC4301
6" Round Down Cylinders
700 / 1200 / 2000 lm (25W Max)
15°, 40°, 50°, 72°
Pendant / Wall
120 VAC / 277 VAC / 347 VAC
IP65 Rated
6"Dia x 8.625"H
Downloads
IES Downloads
icon
FCC4301_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_SPMii.pdf
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCC4301.pdf
icon
FCC4301R.pdf
6in
FCC600 Down
6" Round Down Cylinders
6000 lm (65W Max.)
15°, 25°, 40°, 50°, 72°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6.3"Dia x 10-20"H
6in
FCC600 WUD
6" Round Up/Down Wall Cylinders
500-6000 lm (64W Max.)
15°, 25°, 40°, 50°, 72°
Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6.3"Dia x 10-20"H
Downloads
IES Downloads
icon
FCC600WUD_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCC600_WUD_Standard.pdf
icon
FCC600_WUD_Remote.pdf
6in
FCC600-RGBW
6" Round Down Cylinder
1800 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Surface / Wall
UNV 120 - 277 VAC
IP65 Rated
6.3" Wide x 10-20" High
Downloads
IES Downloads
icon
FCC600-RGBW_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBWii.pdf
Spec Sheet Downloads
icon
FCC600_RGBW.pdf
6in
FCC600-RGBW-WUD
6" Round Up/Down Wall Cylinders
1600 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Wall
UNV 120 - 277 VAC
IP65 Rated
6.3"Dia x 16-20"H
Downloads
IES Downloads
icon
FCC600-RGBW-WUD_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBW_WUDii.pdf
Spec Sheet Downloads
icon
FCC600_WUD_RGBW.pdf
6in
FCC608WSS / FCCSQ608WSS
6" Stainless Steel Cylinders
Up to 2400 lm (Combined 26W Max.)
15°, 40°, 60°, 80º
Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
5.5"W x 8"H
6in
FCC6GA
6" Round Cylinder with Adjustable Gimbal
4000 lm (38W Max.)
25°, 45°, 65°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6.3"W x 10"-20"H
6in
FCCSQ600 Down
6" Square Down Cylinders
6000 lm (68W Max.)
15°, 25°, 35°, 40°, 60°, 72°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6"W x 10-20"H
6in
FCCSQ600 WUD
6" Square Up/Down Wall Cylinder
500-5000 lm (5000 lm Max.) (48W Max.)
15°, 25°, 40°, 50°, 72°
Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6"W x 10-20"H
Downloads
IES Downloads
icon
FC_CYLINDERS_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCCSQ600_WUD_Standard.pdf
icon
FCCSQ600_WUD_Remote.pdf
6in
FCCSQ600-RGBW
6" Square Down Cylinders
1200 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Surface / Wall
UNV 120 - 277 VAC
IP65 Rated
6"W x 10-20"H
Downloads
IES Downloads
icon
FCCSQ600-RGBW_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBWii.pdf
Spec Sheet Downloads
icon
FCCSQ600_RGBW.pdf
6in
FCCSQ600-RGBW-WUD
6" Square Up/Down Wall Cylinder
1600 lm (10° beam angle - ALL ON)
10°, 30°, 60°, 80°
Wall
UNV 120 - 277 VAC
IP65 Rated
6"W x 16"-20"H
Downloads
IES Downloads
icon
FCCSQ600-RGBW-WUD_IES_Data.zip
Install Instructions Downloads
icon
FCC400_600-RGBW_WUDii.pdf
Spec Sheet Downloads
icon
FCCSQ600_WUD_RGBW.pdf
6in
FCCSQ6GA
6" Square Cylinder with Adjustable Gimbal
2500-4000 lm (38W Max.)
25°, 45°, 65°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
6.4"W x 10-20"H
8"
8in
FCC800 Down
8" Round Down Cylinders
2000-7500 lm (79W Max.)
15°, 25°, 40°, 50°, 72°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
7.35"Dia x 12-20"H
8in
FCC800 WUD
8" Round Up/Down Wall Cylinders
500-8000 lm (79W Max.)
15°, 25°, 40°, 50°, 72°
Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
7.35"Dia x 12-20"H
Downloads
IES Downloads
icon
FCC800WUD_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCC800_WUD_Standard.pdf
icon
FCC800_WUD_Remote.pdf
8in
FCC8GA
8" Cylinder Gimbal Ring Rotates & Tilts
2000 lm (18W) Min / 3500 lm (34W Max.)
15°, 25°, 60°
Surface / Pendant / Wall
UNV 120 - 277 VAC / 347 VAC
IP65 Rated
7.35"Dia x 10”-20”H
9"
9in
FCC4300
9" Round Down Cylinder
3000 lm (36W Max.)
15°, 40°, 50°, 72°
Pendant / Wall
120 VAC / 277 VAC / 347 VAC
IP65 Rated
8.75"Dia x 13.5"H
Downloads
IES Downloads
icon
FCC4300_IES_Data.zip
Install Instructions Downloads
icon
Cylinders_SPMii.pdf
icon
Cylinders_FC_WMii.pdf
Spec Sheet Downloads
icon
FCC4300.pdf
icon
FCC4300R.pdf
