FCW8050

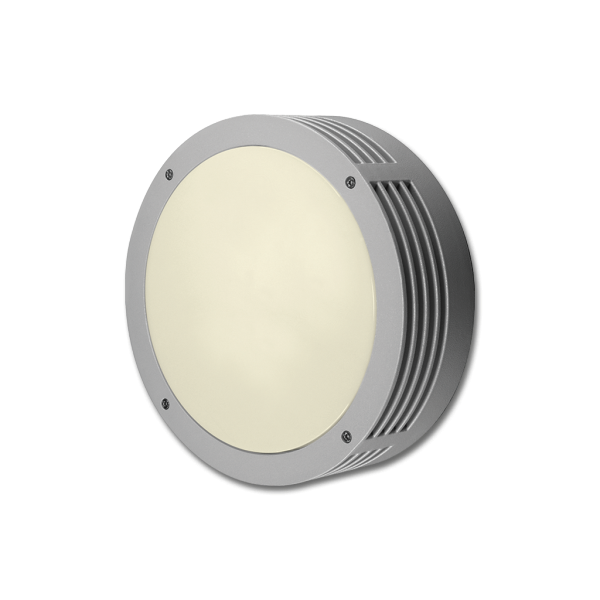

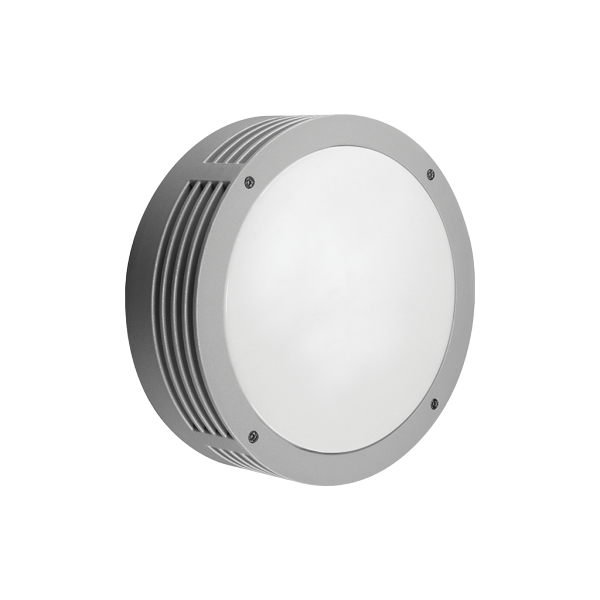

12" Round Aluminum Interior/Exterior Décor Luminaire
The FCW8050 12" Round Interior/Exterior Décor Luminaire is ETL listed for wet locations. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Diffuser is impact resistant, UV stabilized, white, polycarbonate. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available. Mounts directly to standard outlet box. In masonry use 4 x 0.250" x 0.750" screws with lead anchors.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW8050
FCW8050
FCW8050FCW8050

FEATURES & BENEFITS


Performance
3200 lm (36W)

Mounting Type
Surface
Wall

Mounting Options
For ceiling mount or wall mount applications: Mounting holes allow unit to be attached directly to mounting surface or junction box.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
