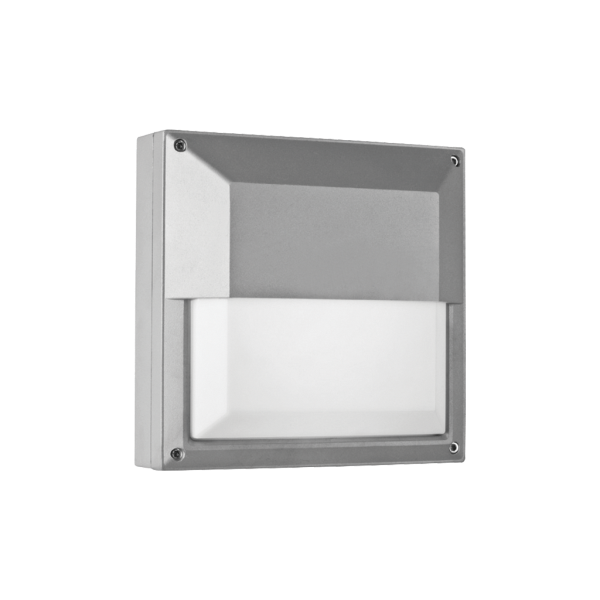

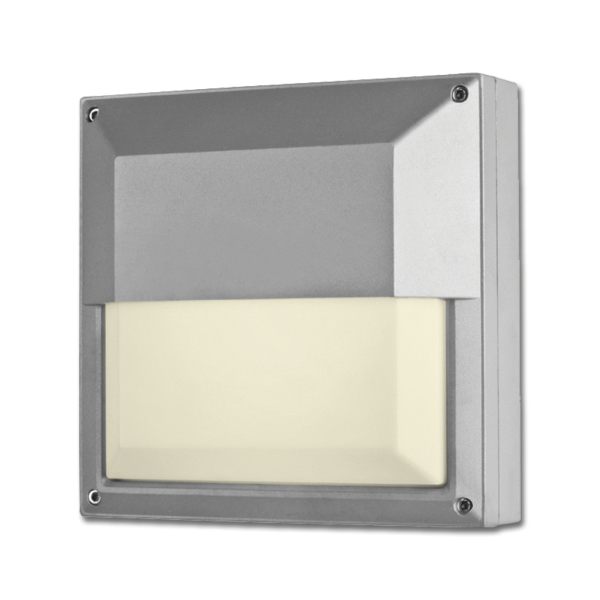

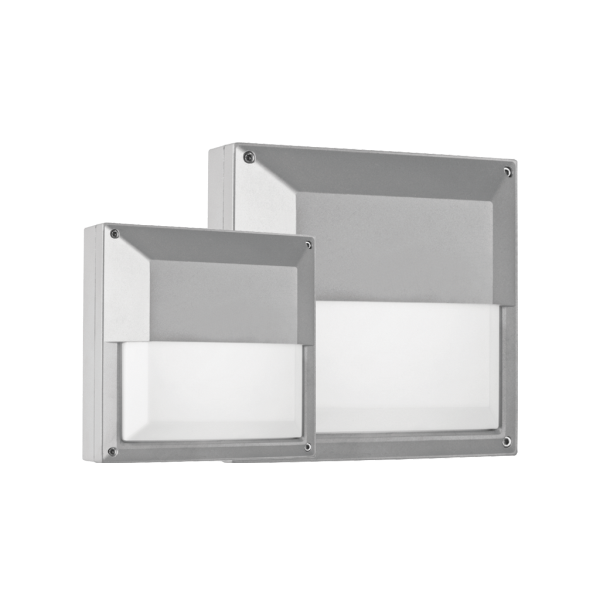

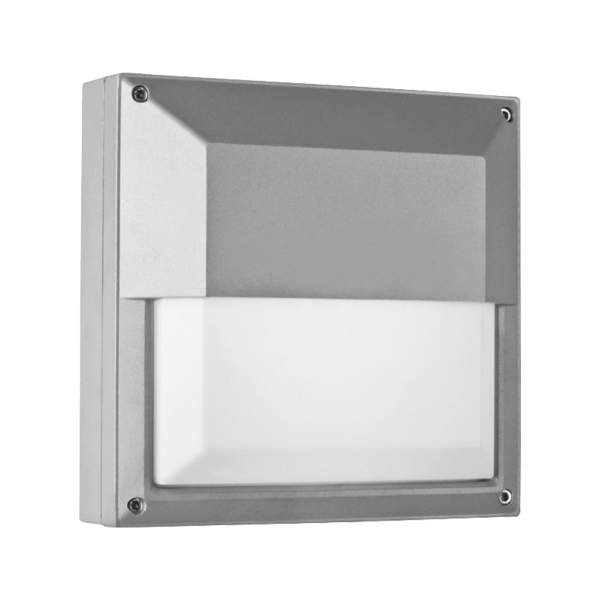

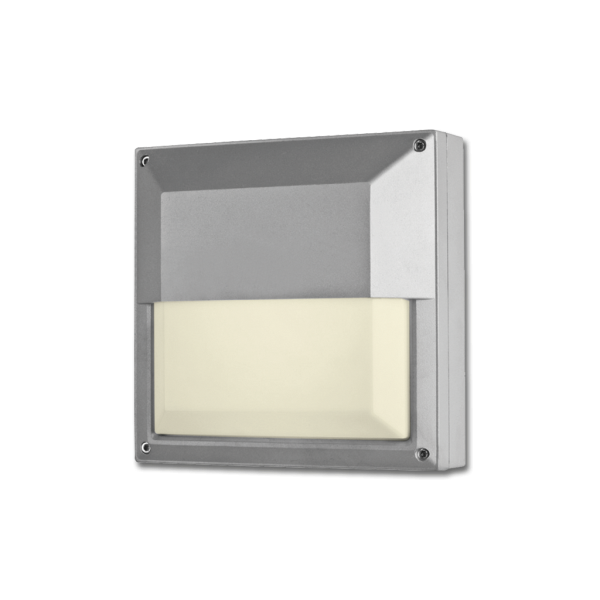

FCW3352 | FCW3362
10" & 14" Square Die-Cast Aluminum Exterior Décor Luminaires
The FCW3352 10" and FCW3362 14" Square Exterior Luminaires are ETL listed, US and CA for wet locations. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Diffuser is impact resistant, UV stabilized, white, polycarbonate. Neoprene continuous closed cell urethane “O” ring gasket to seal out contaminants. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW3352 | FCW3362
FCW3352 | FCW3362
FCW3352 | FCW3362
FCW3352 | FCW3362
FCW3352 | FCW3362
FCW3352 | FCW3362FCW3352 | FCW3362FCW3352 | FCW3362FCW3352 | FCW3362FCW3352 | FCW3362

FEATURES & BENEFITS


Performance
700-2050 lm (41W Max) - 10"
1150-3400 lm (59W Max) - 14"

Mounting Type
Surface
Wall

Mounting Options
For ceiling mount or wall mount applications: Mounting holes allow unit to be attached directly to mounting surface or junction box.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
