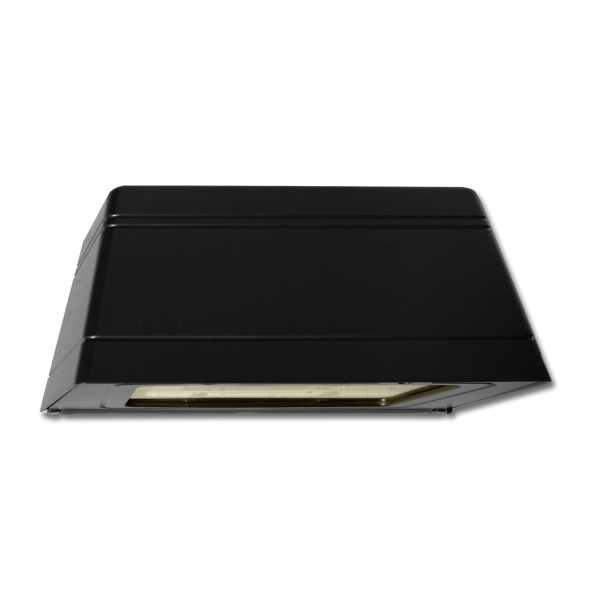

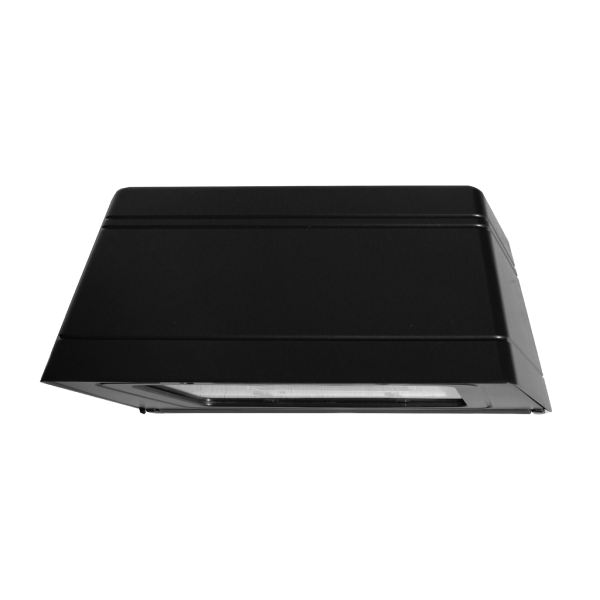

FCW1036
16"W Aluminum Exterior Wall Down Light
This FCW1036 Exterior Down Light Wall Luminaire is Marine grade, corrosion resistant, heavy walled, high pressure die-cast aluminum. Die-cast back mounting plate. Impact resistant, clear, tempered glass. Precision formed semi-specular aluminum for maximum reflectance. Rubber silicone to seal contaminants. Captive stainless steel, tamper resistant hex socket screws. Mounts directly to standard outlet box. Additional mounting holes allow unit to be attached directly to mounting surface. Rated for wet locations. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW1036
FCW1036
FCW1036FCW1036

FEATURES & BENEFITS


Performance
3000 lm (33W)
4300 lm (43W Max @ 4K)

Mounting Type
Wall

Mounting Options
Mounts directly to standard outlet box. Additional mounting holes allow unit to be attached directly to mounting surface.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
