FCW3701

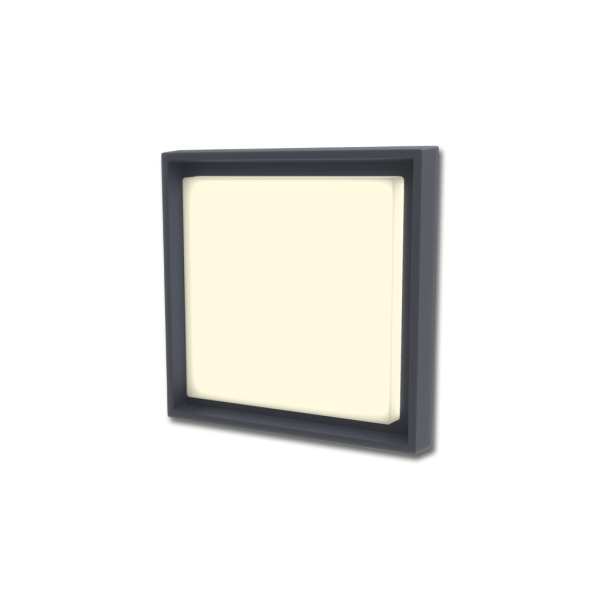

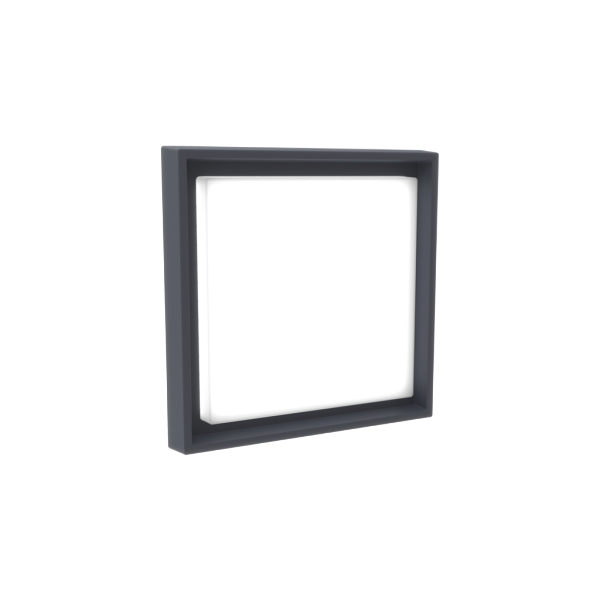

10” Square Exterior Low Profile Luminaire
The FCW3701 10" Exterior Square Low Profile Luminaire is ideal for ceiling, surface and wall applications. It features a seamless, white polycarbonate lens that is durable and impact resistant. Other features include: ADA-complaint design, long service life, IK10 impact rating, 3.0G vibration test rating and IP66 rating. Housing is marine grade, corrosion resistant, heavy gauge high pressure die cast aluminum. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW3701
FCW3701
FCW3701FCW3701

FEATURES & BENEFITS


Performance
500-1500 lm (14W Max)

Control
Tri-Dim (UNV Only); 0-10V to 1% at 120-277VAC; TRIAC/ELV to 1% at 120VAC only) 347V: 0-10V to 1%, remote driver)

Mounting Type
Ceiling
Surface
Wall

Mounting Options
Integrated ceiling or wall mount

Power Input
UNV 120 - 277 VAC
347 VAC

Protection
IP66 Rated

Warranty
5-Year Limited Warranty
