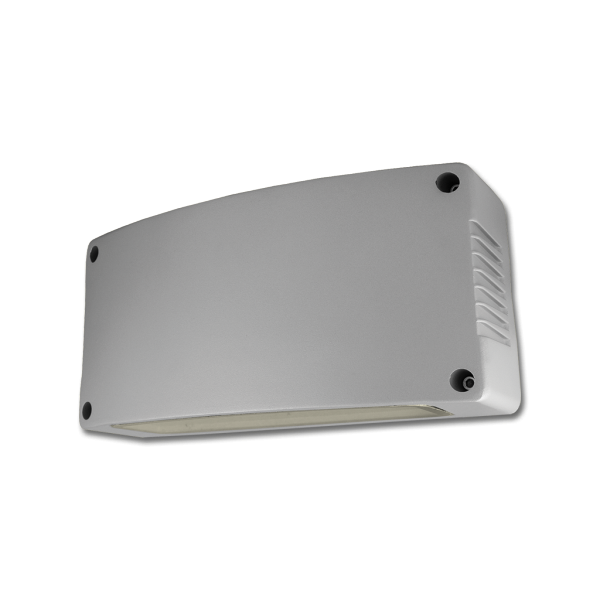

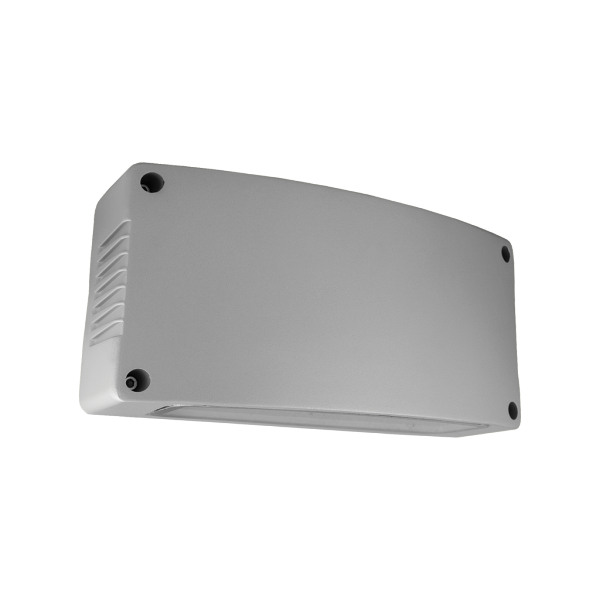

FCW1038
Aluminum Interior/Exterior Wall Up/Down Light
This
FCW1038
Directional Wall Luminaire is ETL listed for wet locations. Housing is corrosion resistant, heavy walled, solid die cast aluminum construction. Semi-recessed die cast aluminum ballast compartment included. Lens is heat resistant, clear tempered glass. Reflector is precision formed semi-specular aluminum for maximum reflectance. Rated for concrete pour. Consult factory on accessories for drywall application. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
IES
IES Downloads
DIRECTIONAL_WALL_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCW1038ii.pdf
Spec Sheet
Spec Sheet Downloads
FCW1038.pdf
FEATURES & BENEFITS
Performance
1400 lm Ea. Dir.
2800 lm (28W Max Total)
Mounting Type
Wall
Mounting Options
Concrete pour, recessed 2" into wall.
Power Input
UNV 120 - 277 VAC
Protection
IP65 Rated
Warranty
5-Year Limited Warranty
