FCW3262

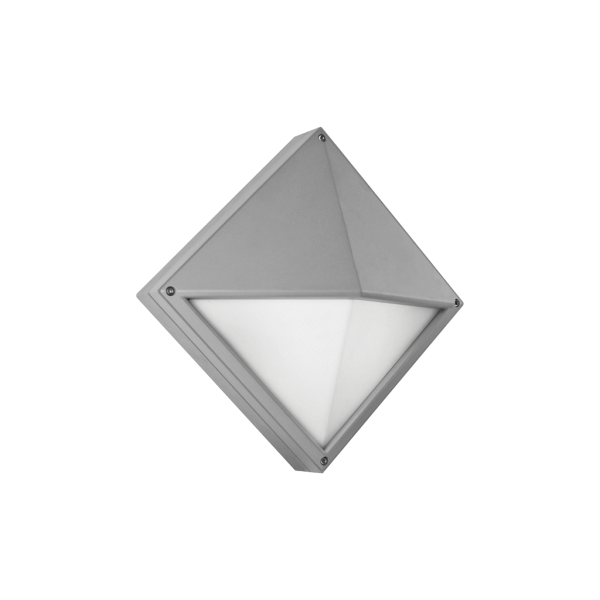

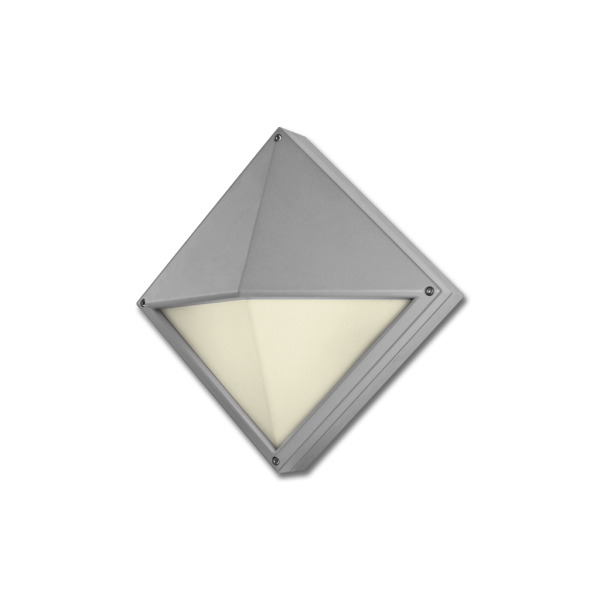

10" Square Diamond Shaped Die-Cast Aluminum Exterior Décor Luminaire
This FCW3262 Exterior Décor Lumiaire is ETL listed, US and CA for wet locations. Meets ADA requirements. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Diffuser is impact resistant, UV stabilized, white, polycarbonate. Neoprene continuous closed cell urethane “O” ring gasket to seal out contaminants. See Mounts directly to standard outlet box. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCW3262
FCW3262
FCW3262FCW3262

FEATURES & BENEFITS


Performance
950-1900 lm (41W Max)

Mounting Type
Surface
Wall

Mounting Options
For ceiling mount or wall mount applications: Mounting holes allow unit to be attached directly to mounting surface or junction box.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
