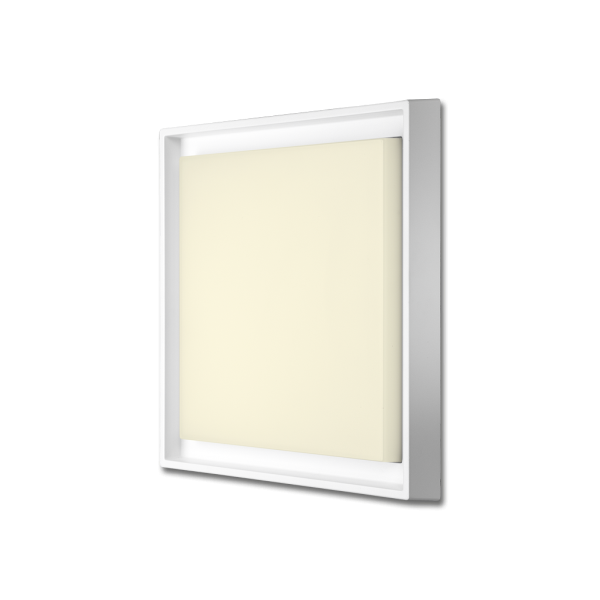

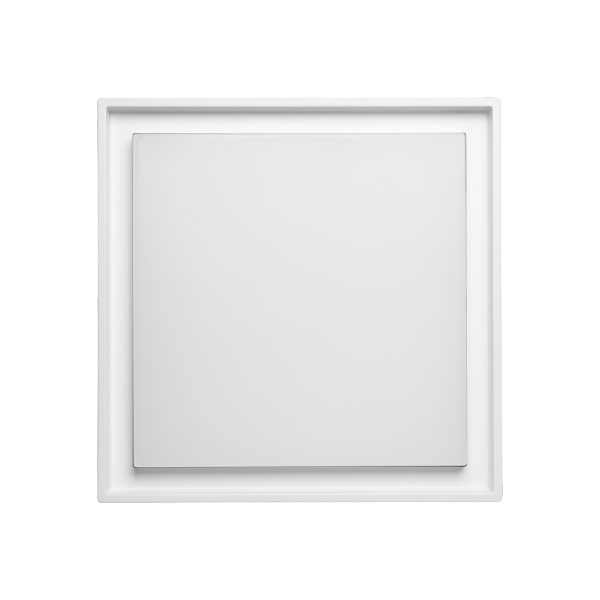

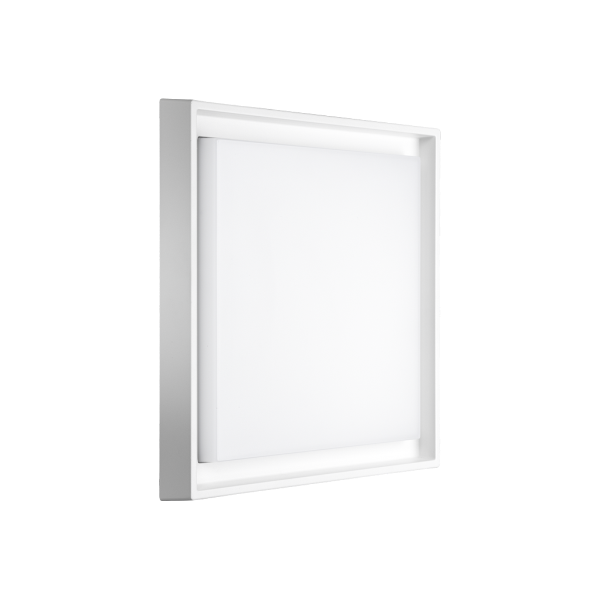

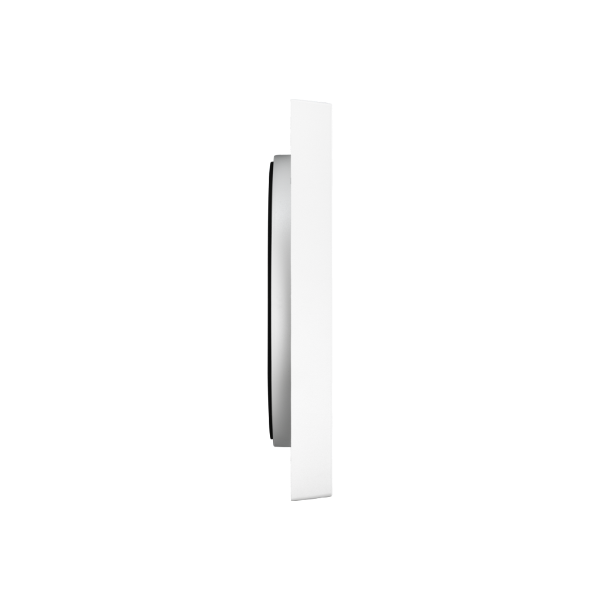

FCW3801
13" Square Exterior Low Profile Luminaire
This
FCW3801
13" Exterior Square Low Profile Luminaire is ideal for ceiling, surface and wall applications. It features a high impact white polycarbonate lens that is vandal resistant and UV stabilized. Features include: long service life, IK10 impact rating, 3.0G vibration test rating and IP66 rating. Housing is marine grade, corrosion resistant, heavy gauge high pressure die cast aluminum. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.
Brochures
Brochures Downloads
FCW3800_3801_Brochure.pdf
IES
IES Downloads
FCW380X_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCW3801ii.pdf
Spec Sheet
Spec Sheet Downloads
FCW3801.pdf
FEATURES & BENEFITS
Performance
1486-2772 lm (32W Max)
Mounting Type
Surface
Wall
Ceiling
Mounting Options
Ceiling, surface, and wall applications
Power Input
UNV 120 - 277 VAC
347 VAC
Protection
IP66 Rated
Warranty
5-Year Limited Warranty
