FCCSQ6GA

6" Square Cylinder with Adjustable Gimbal

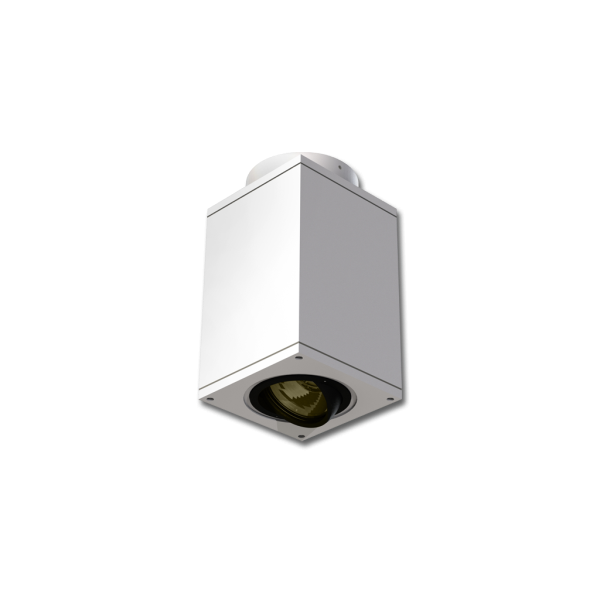

FCCSQ6GA is a 6-inch Square Indoor Cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV. FCCSQ6GA is Marine grade, corrosion resistant, solid aluminum extrusion, die-cast aluminum components. The adjustable gimbal ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050" hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gasket to seal out contaminants, rated for dry or damp locations. There is an additional option under the Downloads Menu to use a Remote Driver and Battery Backup (FCCSQGAR) with the Square Cylinder. Please download the spec sheet for further details. Click here to see our outdoor 6" Round Gimbal Cylinder.
