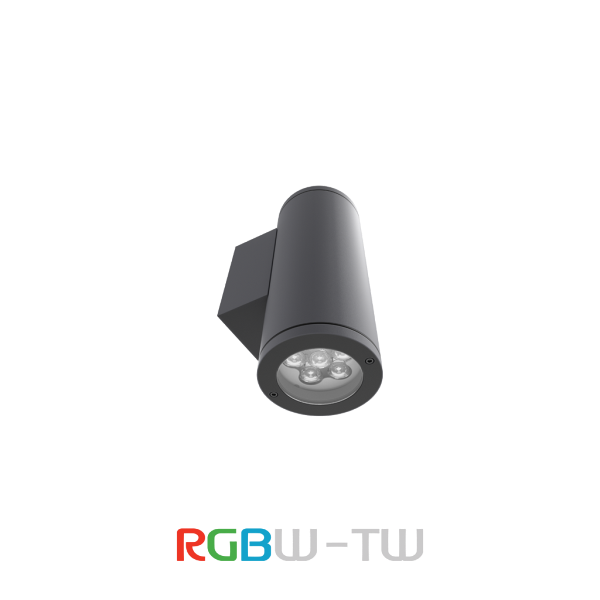

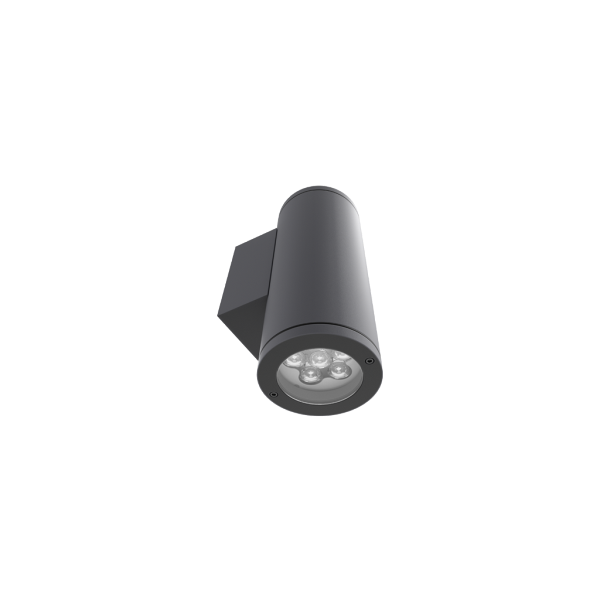

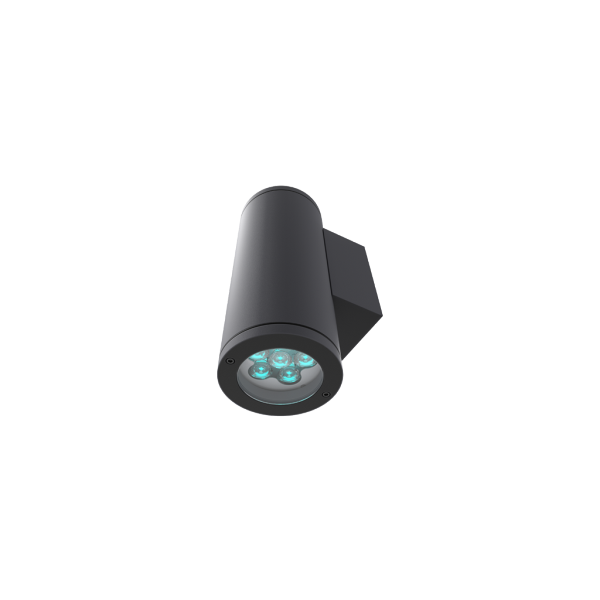

FCC400-RGBW-WUD exterior up/down light cylinder brings dynamic, color-changing capability to any surface or façade. This round, 4-inch diameter luminaire features a clean, classic design to seamlessly blend into any installation. Constructed of marine-grade, corrosion-resistant extruded and die-cast aluminum, and ¼-inch thick tempered glass lens, the FCC400-RGBW-WUD is designed for performance in any environment. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.

FCC400-RGBW-WUD features individual control of the up and down light sources, providing limitless colors and effects. Our core technologies, four available beam options, RGBW and Tunable White capability provide accurate and consistent light output to any installation. Bring attention and engagement to your next project with quality and performance from FC Lighting!

Observe the four unique advancements in technology utilized by our ColourLine Luminaires.

ColourQuick (CQ) - ColourLine RGBW luminaires provide the quickest color mixing in the industry. The SSL ColourQuick technology enables our luminaires to mix instantaneously, within one inch. ColourClone (CC) - As part of our manufacturing process, SSL Automated Manufacturing Robots calibrate every luminaire to the exact same X,Y color coordinates to provide Step-1 like consistency. This process enables every luminaire to be an exact clone. At the end of the process, a bar code is generated for every board. This allows for exact matching for job add-ons or warranty replacements. ColourSoft (CS) - Standard dimming technology uses 8-bit resolution for 256 individual steps. Our 32-bit on-board MCU uses SSL developed software to provide 16-bit resolution that allows 65,536 steps of resolution and only use 8-bits of addressing space! We also use a logarithmic delineation of the resolution to concentrate in the lower third of the dimming curve so the low-end dimming and color transitions have zero flicker. ColourMode (CM) - SSL uses Digital Dual Mode (DDM) technology to provide RGBW and Tunable White in one luminaire! SSL firmware is designed to use 6 DMX channels in the DDM Personality Mode. Maximum Mood Enhancement is available to use for any type of environment. Channels 1-4 are reserved for RGBW. Channels 5-6 are used for White color tuning. Channel 5 controls intensity, channel 6 controls White color.
