FCC6GA

6" Round Cylinder with Adjustable Gimbal

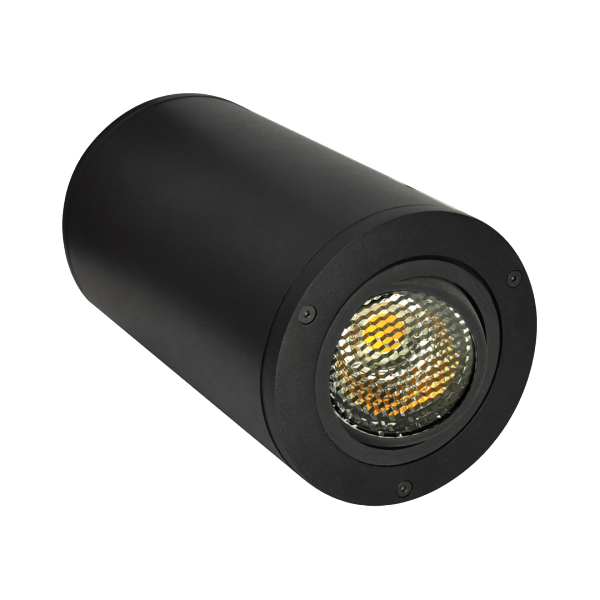

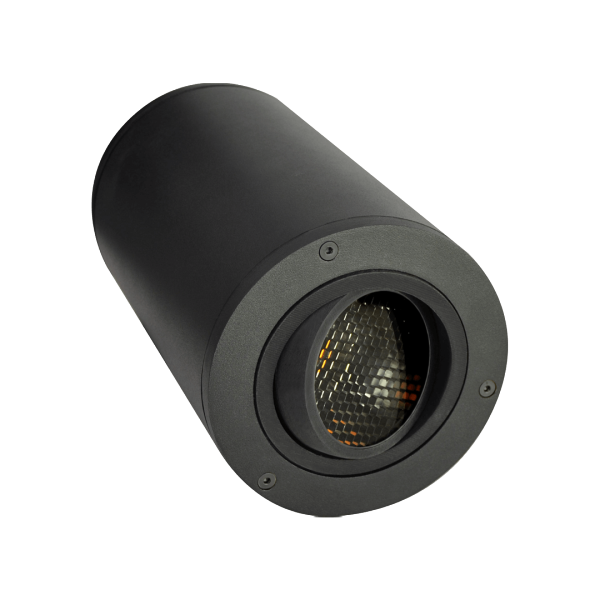

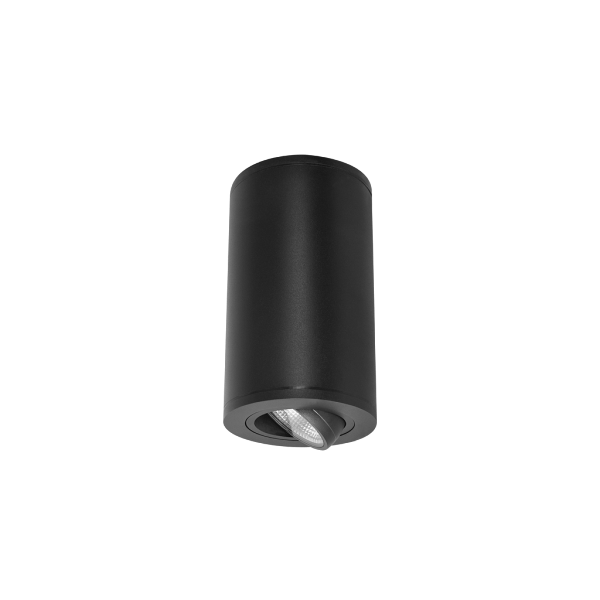

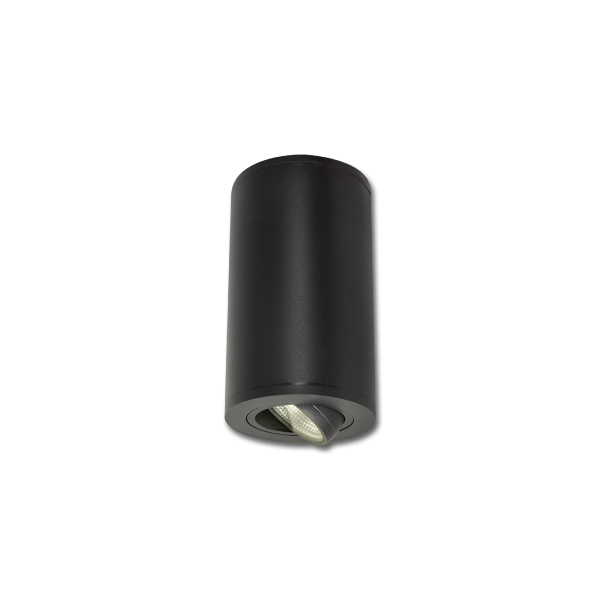

FCC6GA is a 6-inch Round Outdoor Cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV.FCC6GA has exterior heavy-walled, extruded aluminum housing with die-cast lens ring and cap with stainless steel hardware. The adjustable Gimbal ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050" hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gaskets to seal out contaminants. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. There is an additional option under the Downloads Menu to use a Remote Driver and Battery Backup (FCCGAR) with the Round Cylinder. Please download the spec sheet for further details. Click here to see our outdoor 6" Square Gimbal Cylinder.
