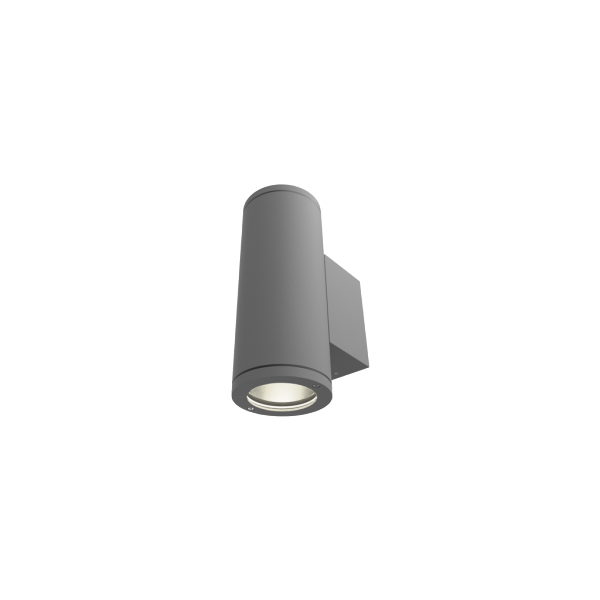

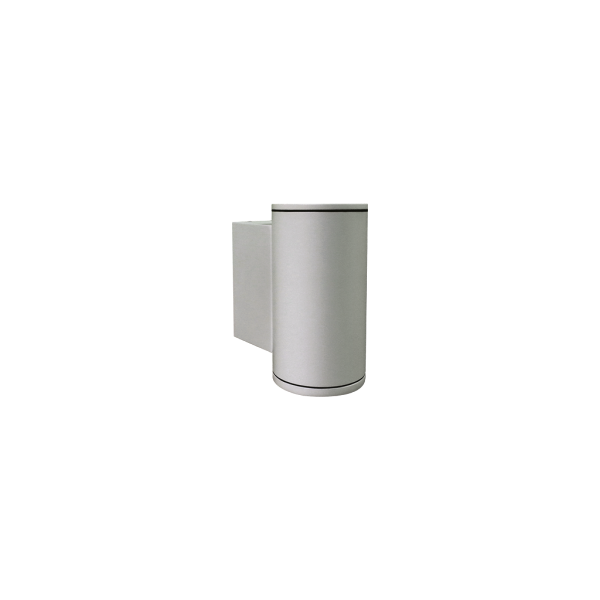

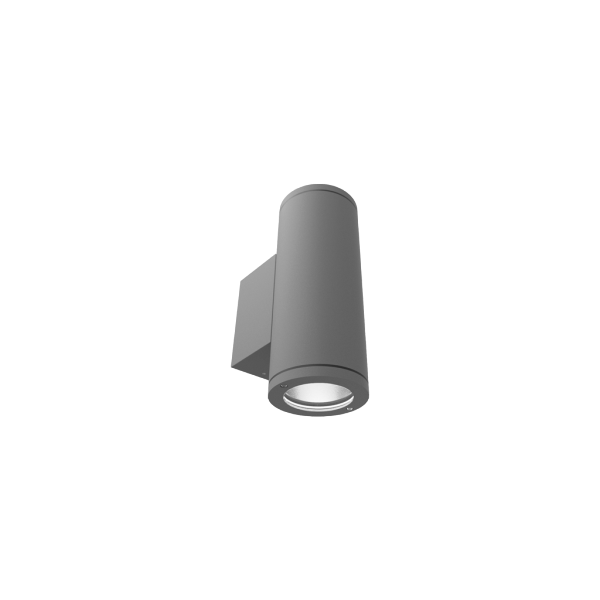

FCC400 WUD
4" Round Wall Up/Down Cylinder
FCC400 WUD Exterior Up/Down Wall Cylinders are 4-inch round diameter luminaires. We’ve given it a modern yet timeless look. We support this application by using Marine grade, corrosion resistant, heavy walled, high pressure extruded and die cast aluminum construction. As well as, a die cast back mounting plate. Furthermore, installers can mount this luminaire directly to a standard recessed junction box. Our standard optic Lens is 1/4" thick, beveled tempered clear heat resistant glass. Finally, the LED reflector we use is precision formed, semi-specular aluminum, designed for maximum reflectivity. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. Available as a Quick Ship product. See more.
IES
Install Instructions
Install Instructions Downloads
Spec Sheet
FCC400 WUD
FCC400 WUD
FCC400 WUD
FCC400 WUDFCC400 WUDFCC400 WUD

FEATURES & BENEFITS


Performance
500-3500 lm (46W Max.)

Optic Beam Options
15°
25°
50°
72°
90°

Mounting Type
Wall

Mounting Options
Mounts directly to standard recessed junction box with wall mount.

Power Input
UNV 120 - 277 VAC
347 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
