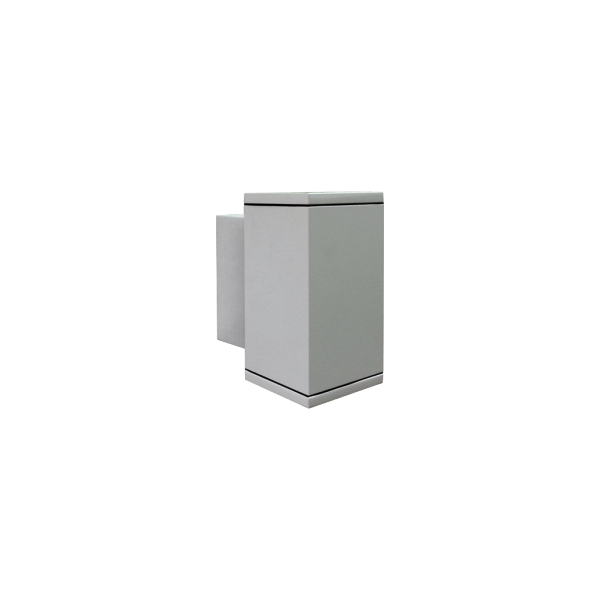

FCCSQ400 WUD

4" Square Wall Up/Down Cylinders

FCCSQ400 WUD Square Cylinders are U.L. listed for up/down positions applications. Housing is Marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Bottom lens is 1/4" thick, beveled tempered clear heat resistant standard. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.

IES

IES Downloads

FCCSQ400WUD_IES_Data.zip

Install Instructions

Install Instructions Downloads

Cylinders_FC_WMii.pdf

Spec Sheet

Spec Sheet Downloads

FCCSQ400_WUD_Standard.pdf

FCCSQ400_WUD_Remote.pdf

FEATURES & BENEFITS

Performance
500-4000 lm (43W Max.)

Optic Beam Options
15°
25°
50°
72°
90°

Mounting Type
Wall

Mounting Options
Mounts directly to standard recessed junction box. Additional holes to mount directly to surface.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
