FCC4300

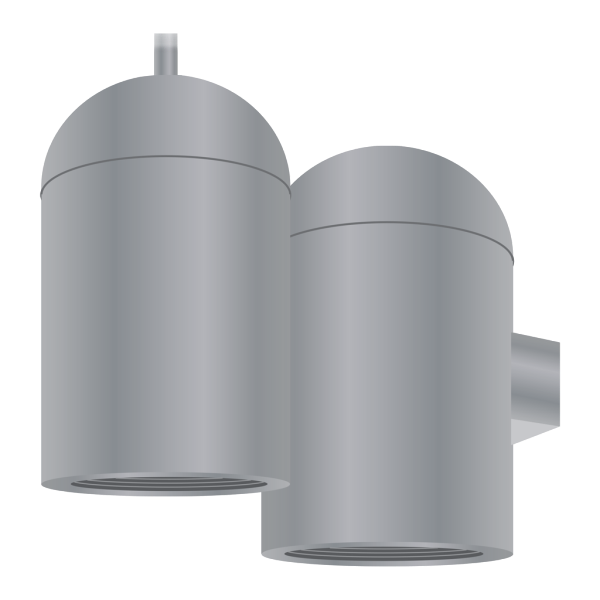

9" Round Down Cylinder

FCC4300 Series Cylinders are U.L. listed for wet locations. Housing, arm and canopy are Marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction. The lens is 1/8" thick tempered, heat resistant, clear glass standard, sandblasted or prismatic lens optional. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.

IES

IES Downloads

FCC4300_IES_Data.zip

Install Instructions

Install Instructions Downloads

Cylinders_SPMii.pdf

Cylinders_FC_WMii.pdf

Spec Sheet

Spec Sheet Downloads

FCC4300.pdf

FCC4300R.pdf

FEATURES & BENEFITS

Performance
3000 lm (36W Max.)

Optic Beam Options
15°
40°
50°
72°

Mounting Type

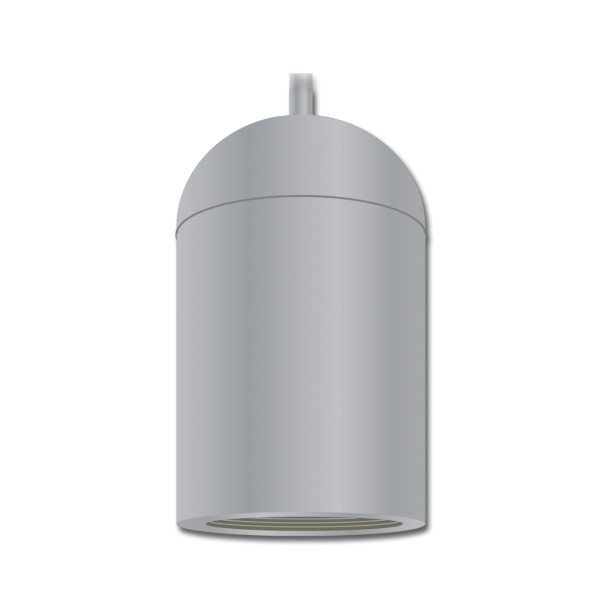

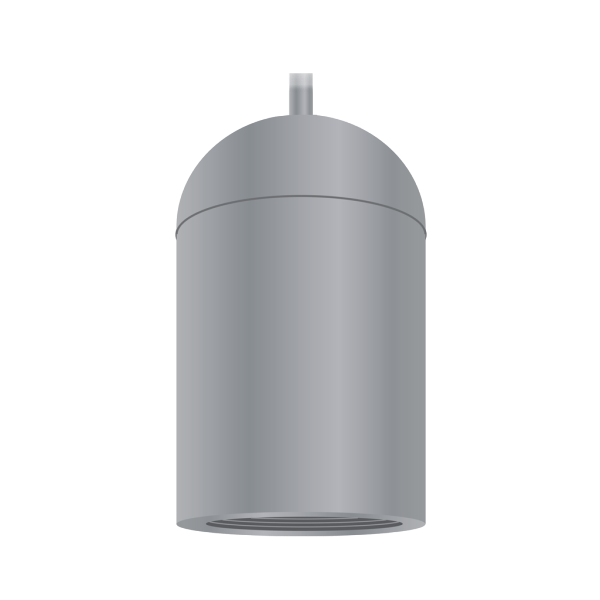

Pendant

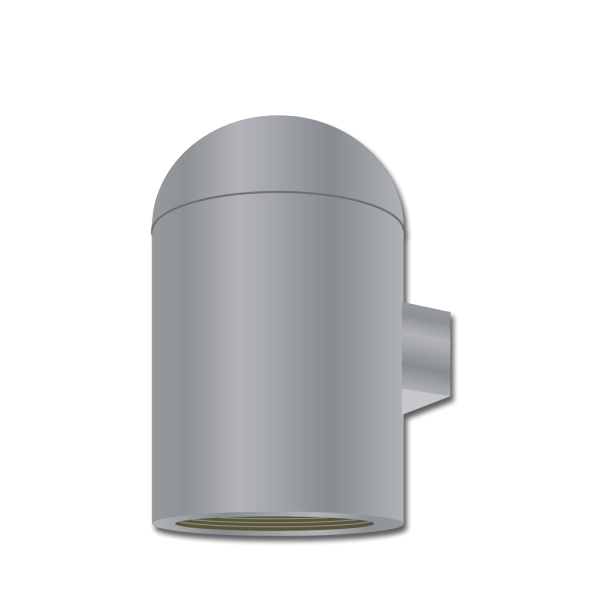

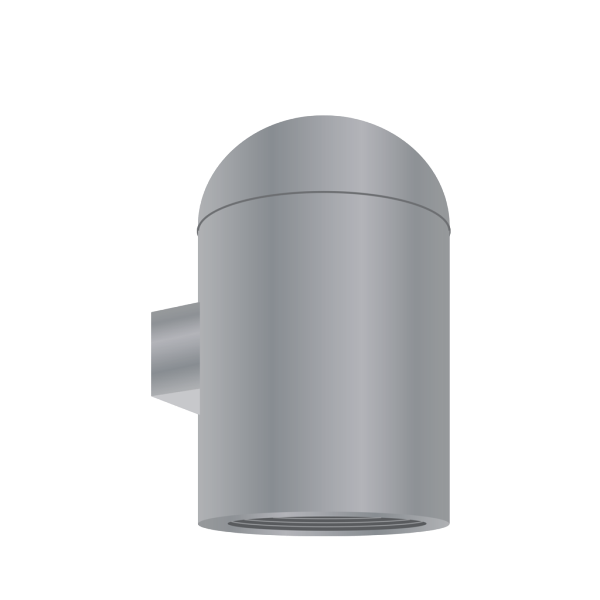

Wall

Mounting Options
Mounts directly to standard recessed junction box. Additional mounting holes allow unit to be attached directly to mounting surface. Die-cast locking arm tilts 12° outward. Pendant (18 in, standard) with swivel canopy. Consult factory for modified pendant lengths

Power Input
120 VAC
277 VAC
347 VAC

Protection
IP65 Rated

Warranty
5-Year Warranty
