FCBT690

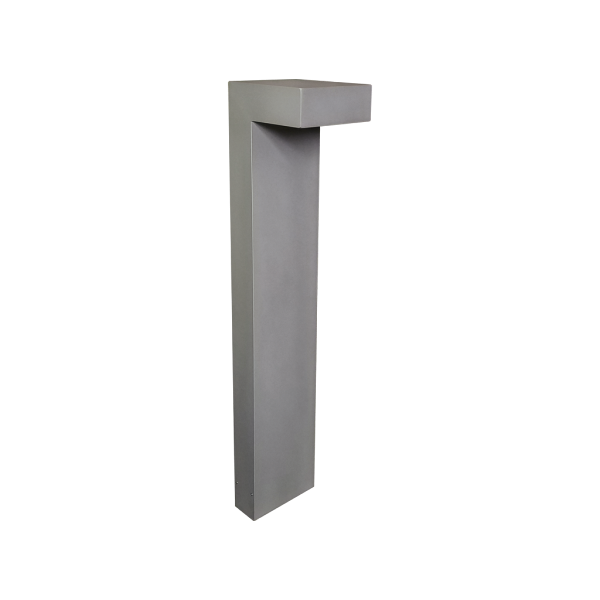

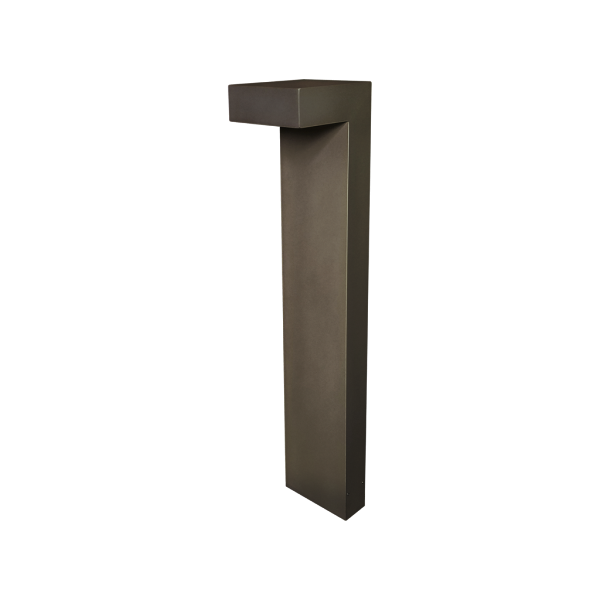

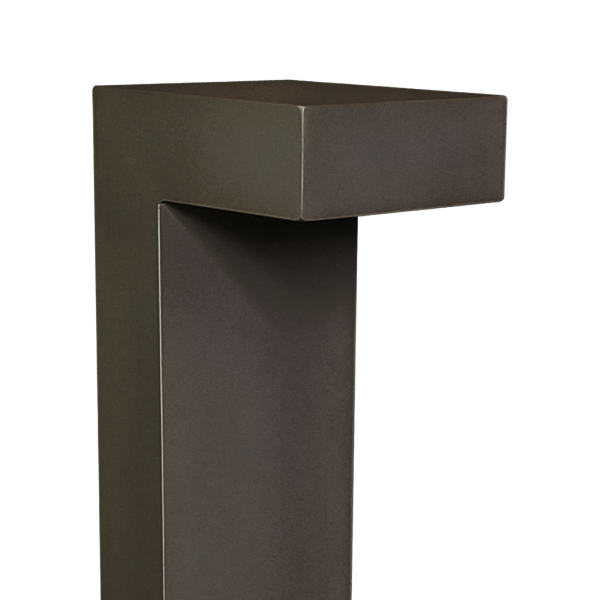

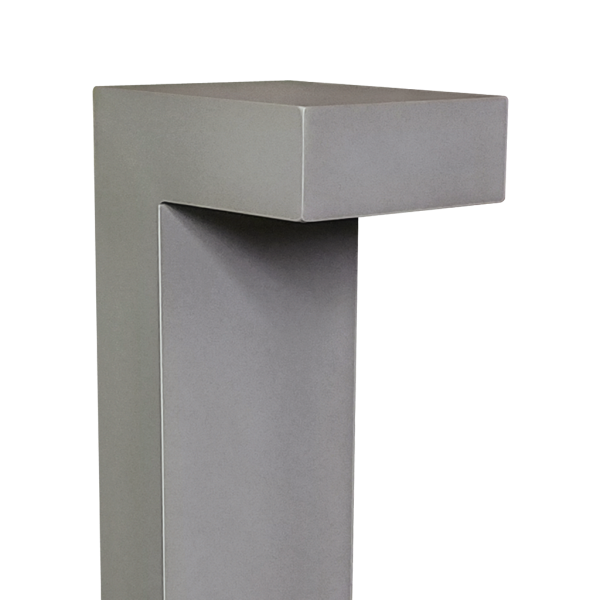

36" or 42" High Aluminum Bollard
FCBT690 Bollards are Marine grade, corrosion resistant, heavy walled aluminum. Tower body is extruded aluminum with two standard heights of 36" or 42". Lens is clear, polycarbonate. Neoprene continuous closed cell gasket to seal out contaminants. Captive and recessed stainless steel, tamper resistant hex socket screws. Mounting insert sets base flush to surface. Base is anchored through with a set of four 12" length x 3/8" diameter hot dipped bolts. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. Available as a Quick Ship product. See more.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690
FCBT690FCBT690FCBT690FCBT690FCBT690FCBT690FCBT690FCBT690FCBT690

FEATURES & BENEFITS


Performance
1915 lm (26W)
1436 lm (20W)
958 lm (13W)
479 lm (7W)

Control
0-10V Dimming

Mounting Options
A thick base plate is provided and anchored through with a set of four 12" length x 3/8" diameter hot dipped anchor bolts. Heavy gauge base bracketing for bollard installation.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
