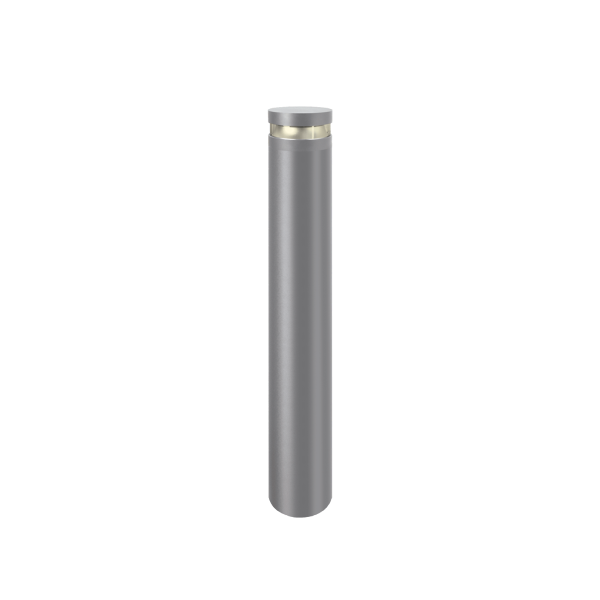

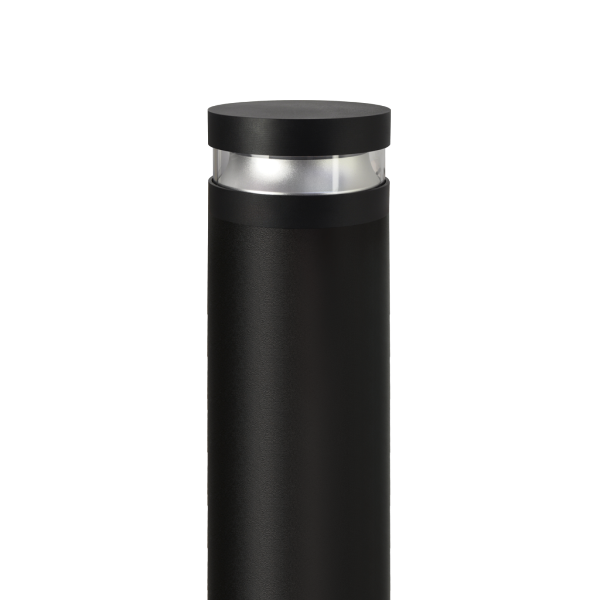

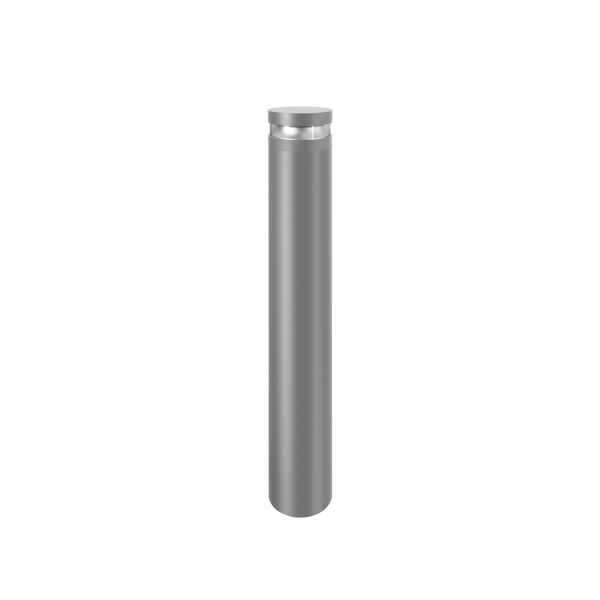

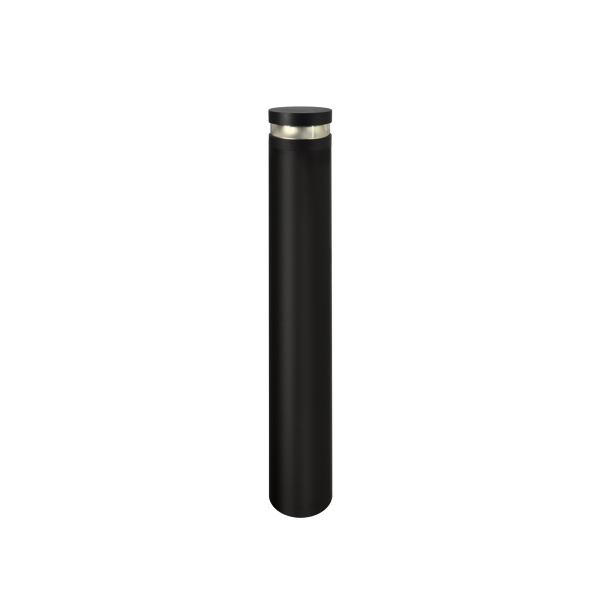

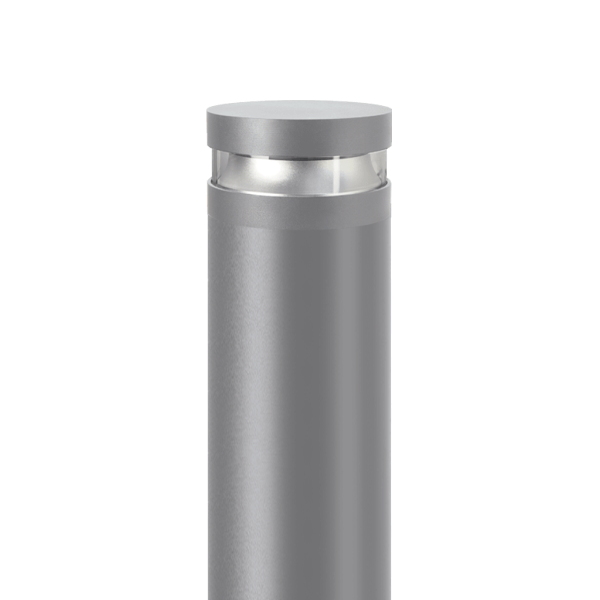

FCB6C-36L02
6" Bollard 360° Light with 2" High Lens
FCB6C-36L02 exterior die-cast aluminum, 6-inch nominal diameter bollard with a 1.625" opening for a 360° light pattern with clear polycarbonate lens. These bollards are Marine grade, corrosion resistant, heavy walled, high pressure die-cast aluminum. Circular housing is extruded aluminum. Impact resistant, UV stabilized, white, polycarbonate diffuser. Neoprene continuous closed cell gasket to seal out contaminants. Captive and recessed stainless steel, tamper resistant hex socket screws. A thick die-cast base plate is provided and anchored through with a set of four 12" length x 3/8" diameter hot dipped anchor bolts. Heavy gauge base bracketing for bollard installation. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. Available as a Quick Ship product. See more.
IES
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCB6C-36L02
FCB6C-36L02
FCB6C-36L02
FCB6C-36L02
FCB6C-36L02
FCB6C-36L02
FCB6C-36L02FCB6C-36L02FCB6C-36L02FCB6C-36L02FCB6C-36L02FCB6C-36L02

FEATURES & BENEFITS


Performance
1100 lm (20W)

Control
0-10V Dimming

Mounting Options
A thick die-cast base plate is provided and anchored through with four 12" length x 3/8" diameter hot dipped anchor bolts.

Power Input
UNV 120 - 277 VAC

Protection
IP66 Rated

Warranty
5-Year Limited Warranty
