FCB5500
38" & 50" Bollard Height Options

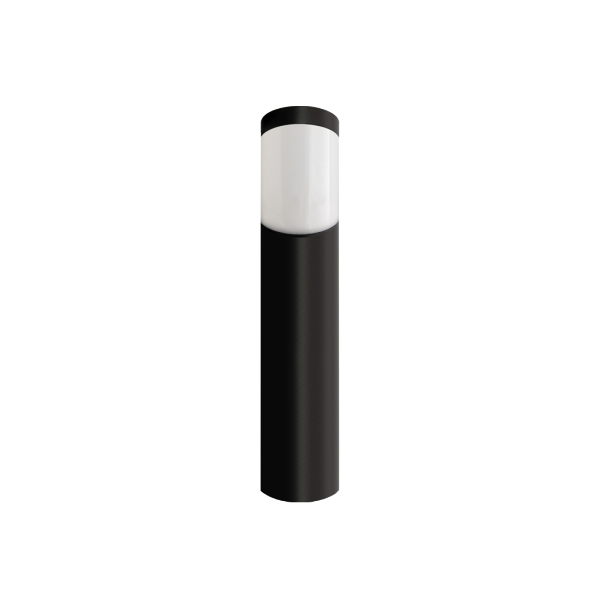

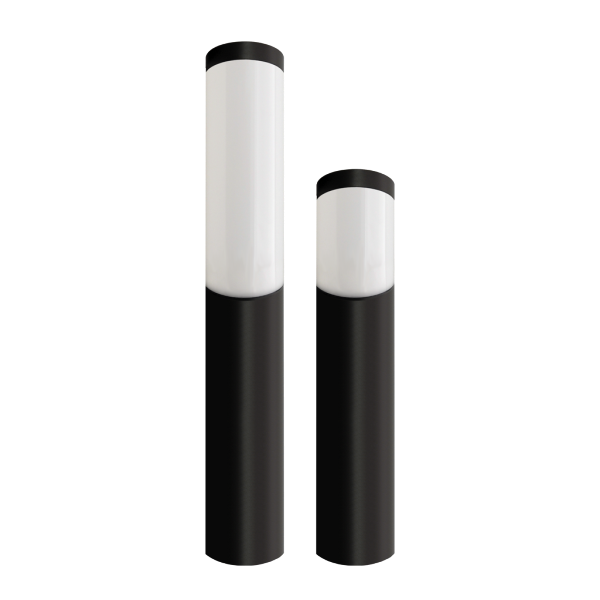

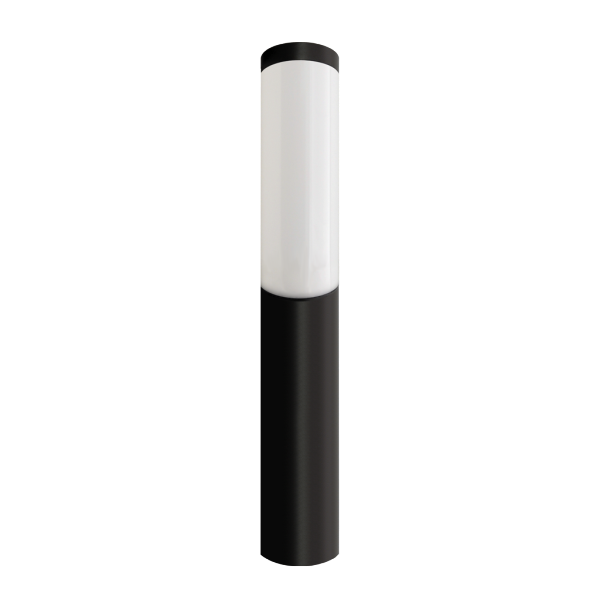

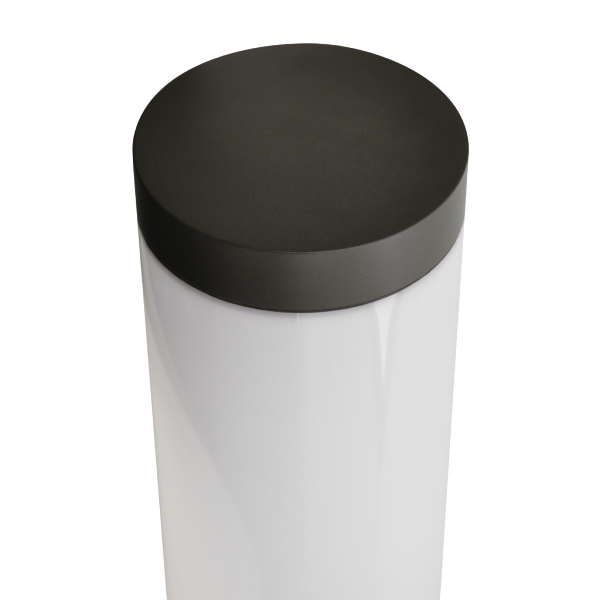

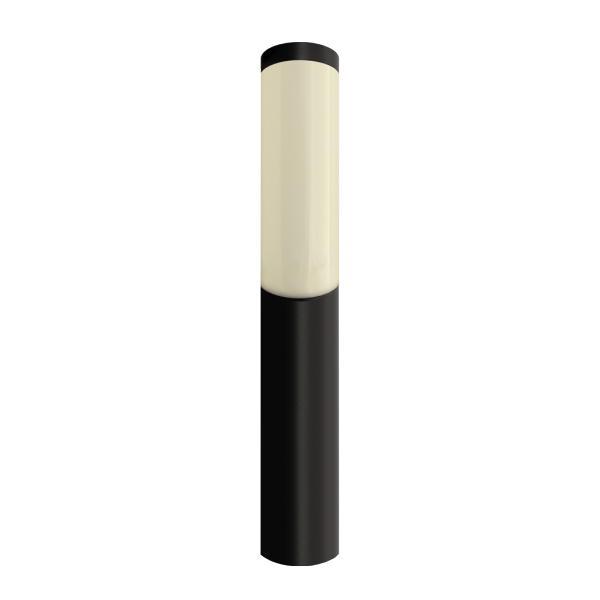

FCB5500 Bollard has an 8-inch round nominal diameter post, white LEDs, IP65 rated for outdoor use with a 360° window and impact resistant, UV stabilized, and opal diffuser lens. Available in black, bronze, graphite grey, silver, white and custom colors. It's offered in 2 different heights and lumen packages based on the chosen lens height. This bollard is offered with two different lens heights, 1-foot and 2-feet. The bollard post is the same height for both options.
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCB5500
FCB5500
FCB5500
FCB5500
FCB5500
FCB5500
FCB5500FCB5500FCB5500FCB5500FCB5500FCB5500

FEATURES & BENEFITS


Performance
800 lm
1600 lm
1900 lm
3400 lm (typical 4K)

Control
0-10V Dimming

Mounting Options
A 1.50" thick die-cast base plate is provided and anchored through with a set of four 12" in length x 0.375" diameter hot dipped anchor bolts. Pole is included to maximum height (specify custom heights).

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
