FCSL308

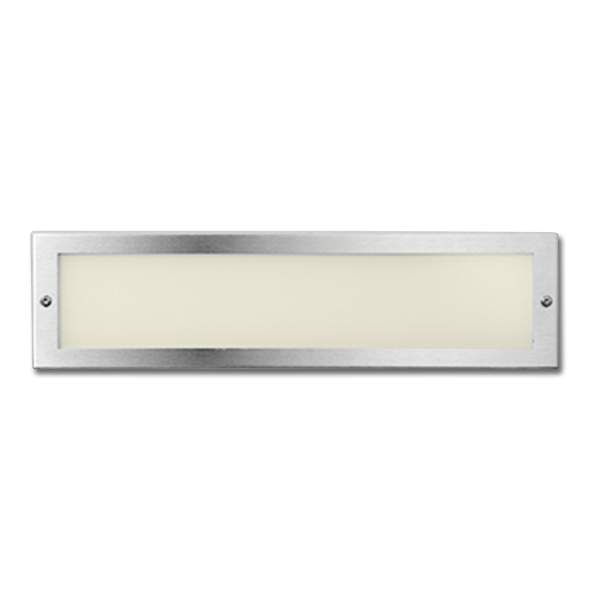

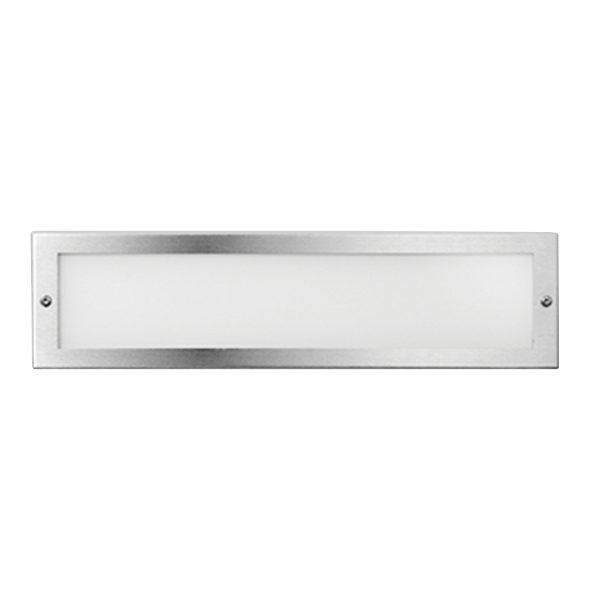

20" Step Light with Open Stainless Steel Faceplate
The
FCSL308
Step Light is U.L. listed for interior and exterior wet locations. The faceplate is brushed marine grade 316 stainless steel finish and the housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with (2) 7/8" KO. Lens is 1/8" thick, tempered opal glass, heat resistant. Precision formed, reflector for maximum reflectance. Add elegance and longevity to your walkway or stairs with this long lasting stainless steel fixture.
IES
IES Downloads
FCSL308_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCSL300ii.pdf
Spec Sheet
Spec Sheet Downloads
FCSL308.pdf
FEATURES & BENEFITS
Performance
1600 lm (35W Max)
Mounting Options
Concrete pour standard or Remodel Drywall applications.
Power Input
UNV 120 - 277 VAC
Protection
IP65 Rated
Warranty
5-Year Limited Warranty
