FCP660
Die-Cast Aluminum Pendant with Adjustable Cable Mount

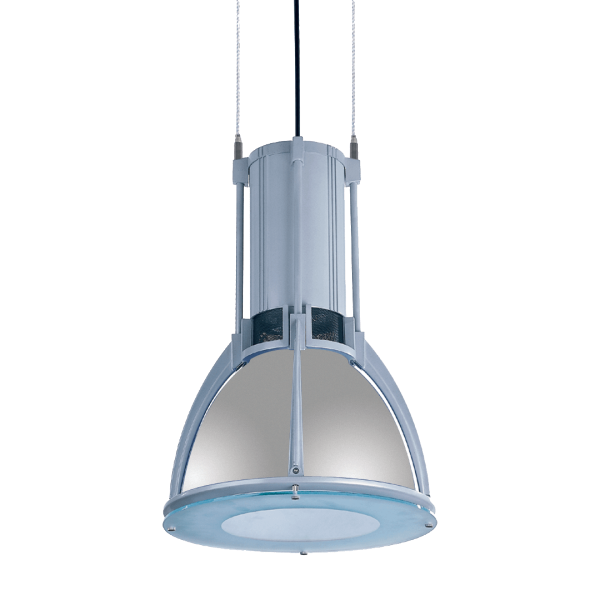

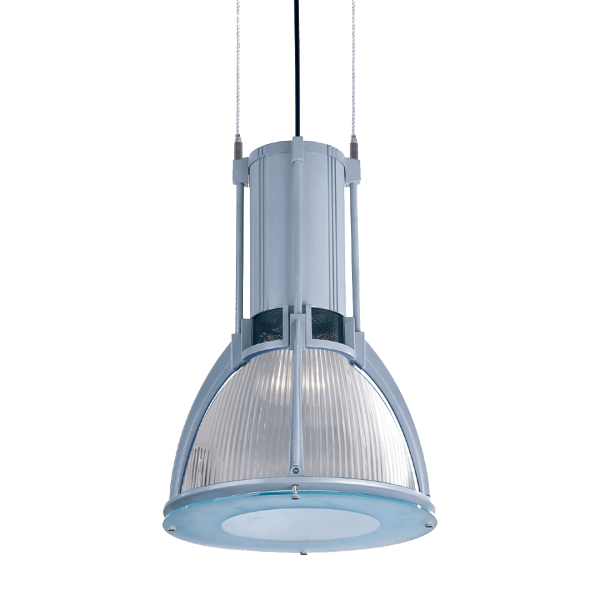

The FCP660 Pendant has a Die-cast aluminum shade frame and an integral ballast housing from extruded aluminum. Comes standard with 10 feet of adjustable aviation cable. It has a glass shade with framed tempered glass lens. The lens has an etched perimeter and clear center surface. Etched aluminum (EA) reflector polished outside with anodized etched inside. Ribbed acrylic (RA) for wide spread illumination. Captive stainless steel, tamper resistant hex socket screws. Available as a Quick Ship product. See more.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCP660
FCP660
FCP660
FCP660
FCP660
FCP660FCP660FCP660FCP660FCP660

FEATURES & BENEFITS


Performance
6000 lm (60W)
4000 lm (40W)

Control
0-10V Dimming Included

Mounting Options
Supplied with grip-lock, aviation cable and canopy set for mounting directly to standard outlet box. Adjustable cable, from 8”-120” is standard. Consult factory for custom lengths.

Power Input
UNV 120 - 277 VAC

Protection
IP20 Rated

Warranty
5-Year Limited Warranty
