FCP663
Die-Cast Aluminum Pendant with Adjustable Cable Mount

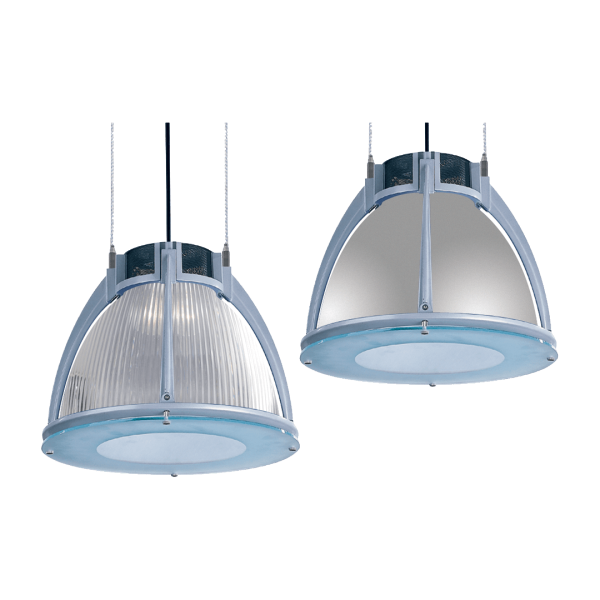

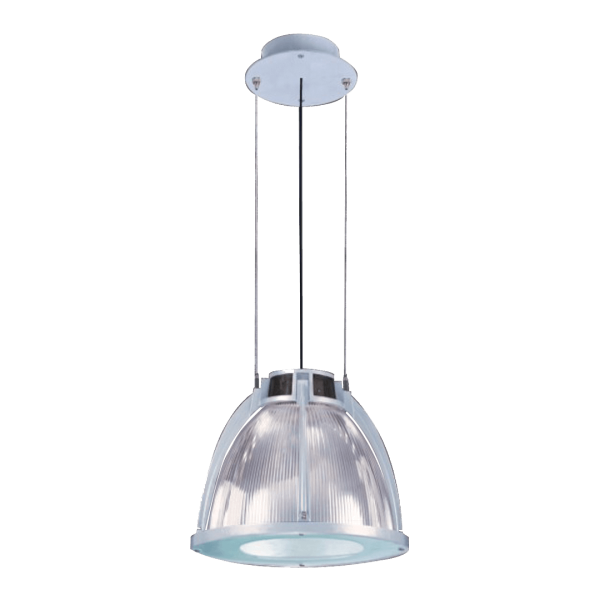

The FCP663 Pendant has Die-cast aluminum shade frame. Integral ballast housing for FCP662 is extruded aluminum with die-cast top. 10 ft adjustable aviation cable is standard. Glass shade with framed tempered glass lens. Lens has an etched perimeter, clear center surface. Etched aluminum (EA) reflector polished outside with anodized etched inside. Ribbed acrylic (RA) for wide spread illumination. Captive stainless steel, tamper resistant hex socket screws. Supplied with grip-lock, aviation cable and canopy set for mounting directly to standard outlet box. Adjustable cable, from 8”-120” is standard. Consult factory for custom lengths.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCP663
FCP663
FCP663
FCP663
FCP663FCP663FCP663FCP663

FEATURES & BENEFITS


Performance
6000 lm (66W)

Mounting Options
Supplied with grip-lock, aviation cable and canopy set for mounting directly to standard outlet box. Adjustable cable, from 8”-120” is standard. Consult factory for custom lengths.

Power Input
UNV 120 - 277 VAC

Protection
IP20

Warranty
5-Year Limited Warranty
