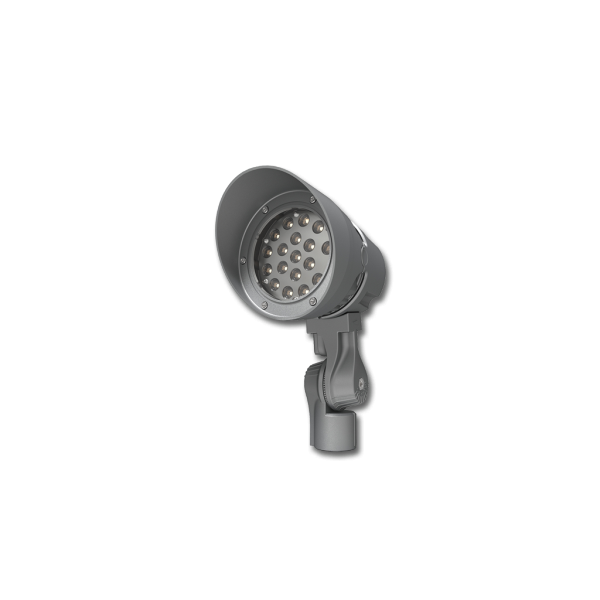

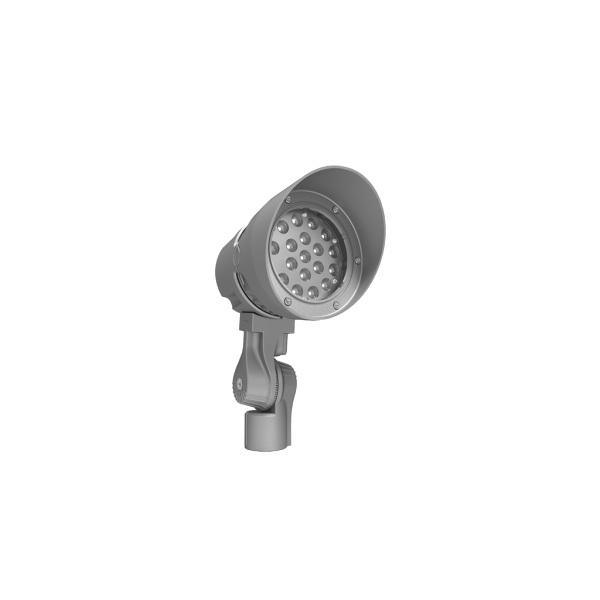

FCF1105
5" High Powered Flood Light
FCF1105 is a versatile luminaire that offers a complete solution for flood lighting applications. These round, compact luminaires provide the industry's widest range of mounting options. The FCF1105 has multiple CCT options and an integral universal voltage driver, allowing easy installation. The FCF1105 housing is made from marine grade, corrosion-resistant, heavy-walled, die-cast aluminum. Cooling fins have been engineered in the construction to maximize component life. It features a clear, tempered glass lens with silicone gaskets to provide maximum protection against contaminants and the environment. Standard polyester powder coat finishes include black, bronze, graphite grey, silver, and white, with custom colors also available. RGBW Flood Lights by SSL.
Brochures
Brochures Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCF1105
FCF1105
FCF1105
FCF1105
FCF1105
FCF1105FCF1105FCF1105FCF1105FCF1105

FEATURES & BENEFITS


Performance
2020 lm (21W)

Optic Beam Options
10°
15°
25°
40°
60°
120°

Control
Optional: 0-10V Dimming

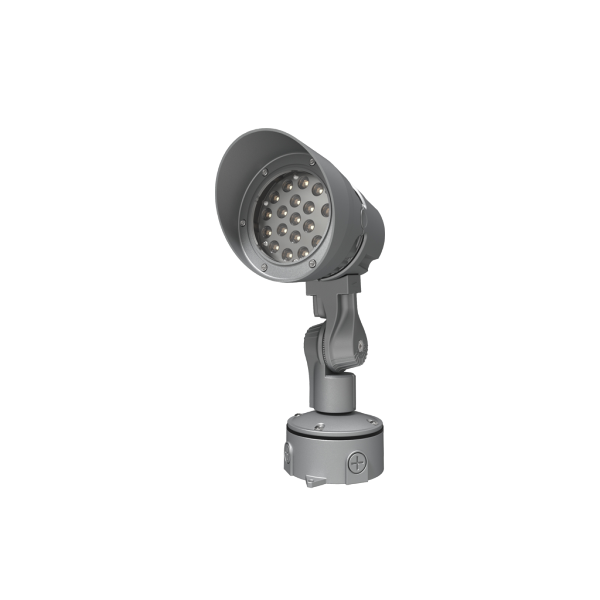

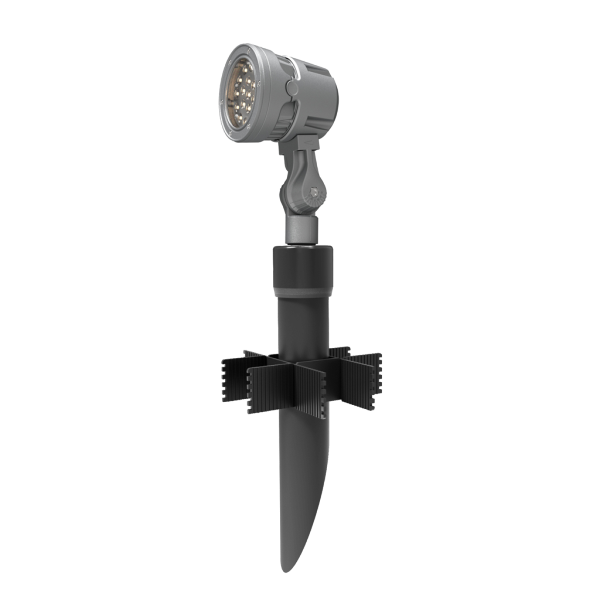

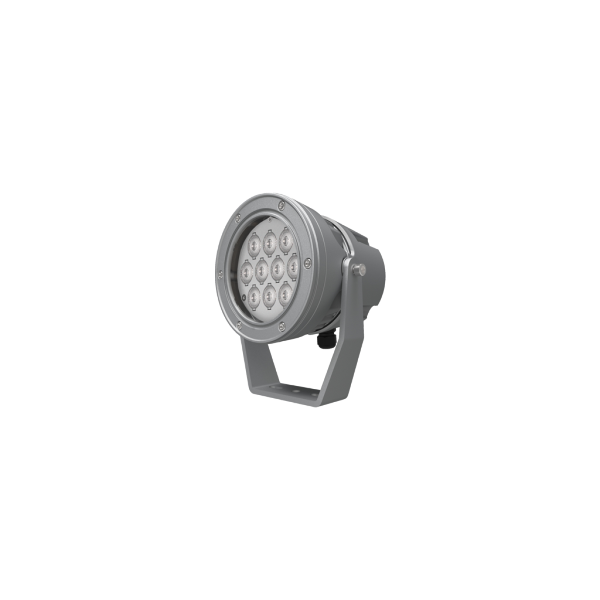

Mounting Options
Standard mounting is ½" - 14 NPS and includes adjustments for 145° vertical rotation and 360° horizontal rotation. See spec sheet for other mounting options.

Power Input
UNV 120 - 277 VAC

Protection
IP66 Rated

Warranty
5-Year Limited Warranty
