FCF1109
9" High Powered Flood Light

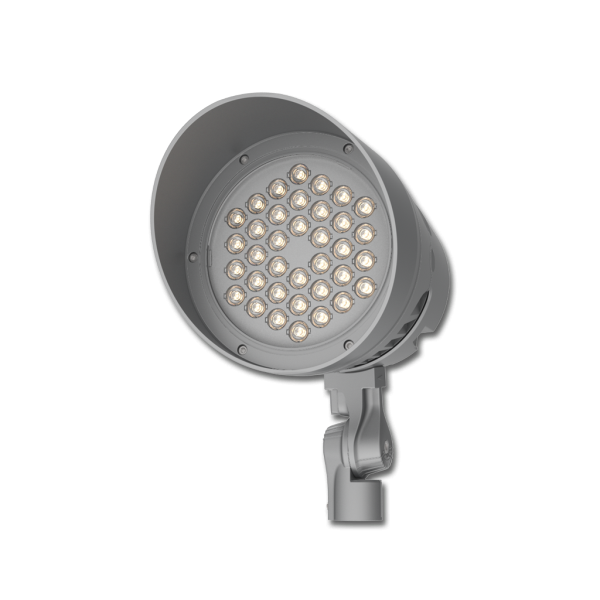

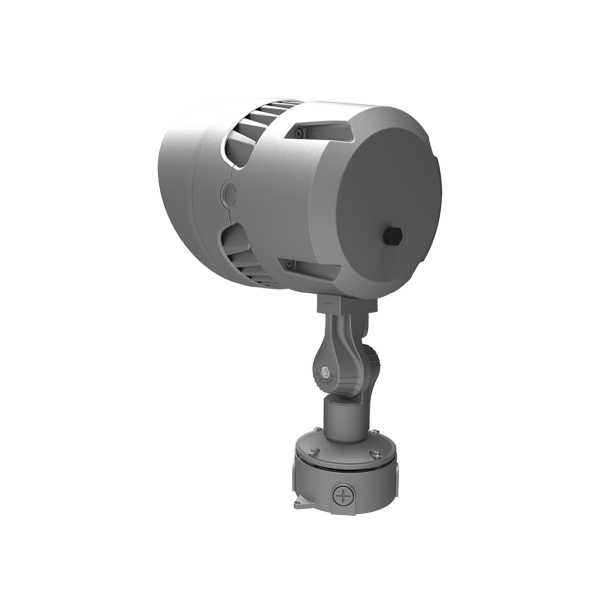

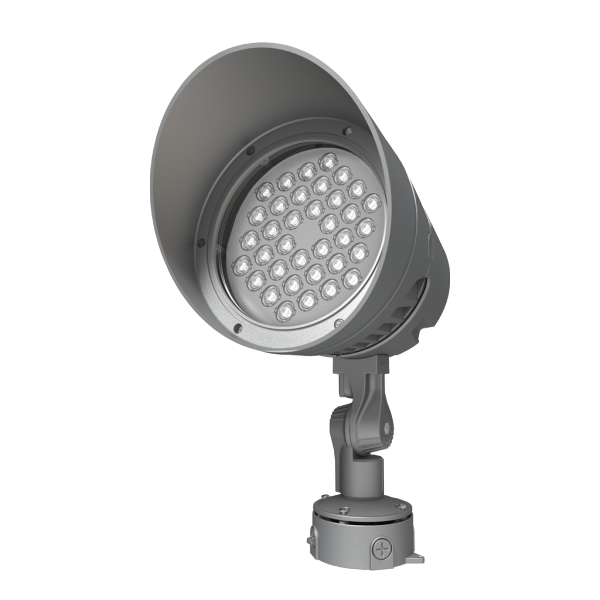

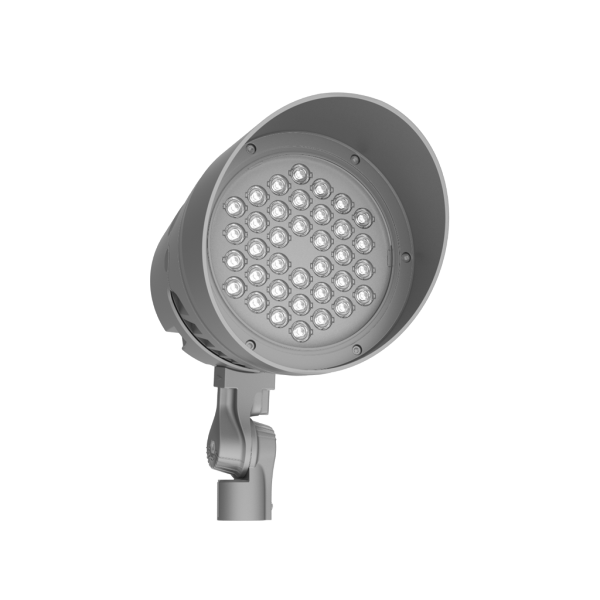

FCF1109 is a versatile 9-inch round flood light offers a complete solution for flood lighting applications. These round, compact luminaires provide the widest range of mounting options in the industry. The FCF1109 is available with multiple CCT options and an integral universal voltage driver which allows for easy installation. Housing is made from marine grade, corrosion resistant, heavy walled, die-cast aluminum. Cooling fins have been engineered in the construction to maximize component life. It features a clear, tempered glass lens with silicone gasketing to provide maximum protection against contaminants and the environment. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available. Click to see RGBW Flood Lights by SSL.
Brochures
Brochures Downloads
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCF1109
FCF1109
FCF1109
FCF1109
FCF1109
FCF1109FCF1109FCF1109FCF1109FCF1109

FEATURES & BENEFITS


Performance
8000 lm (80W)
10200 lm (109W)

Optic Beam Options
10°
20°
30°
70°
100°

Control
Optional: 0-10V Dimming

Mounting Options
Standard mounting is ½" - 14 NPS and includes adjustments for 145° vertical rotation and 360° horizontal rotation. See spec sheet for other mounting options.

Power Input
UNV 120 - 277 VAC

Protection
IP66 Rated

Warranty
5-Year Limited Warranty
