FCSL407

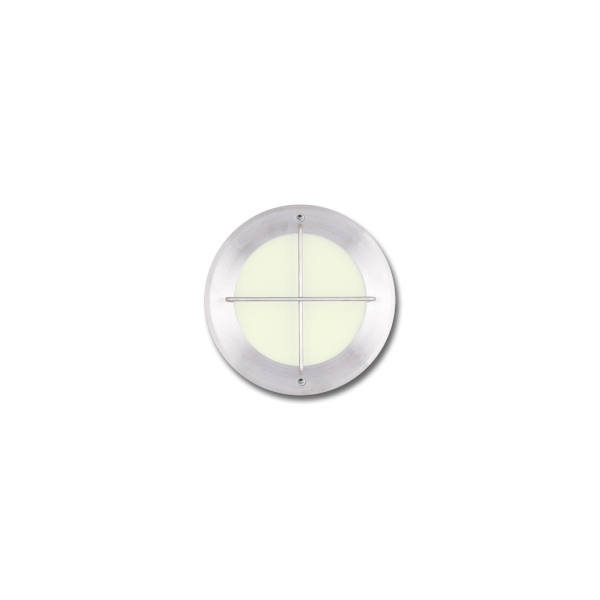

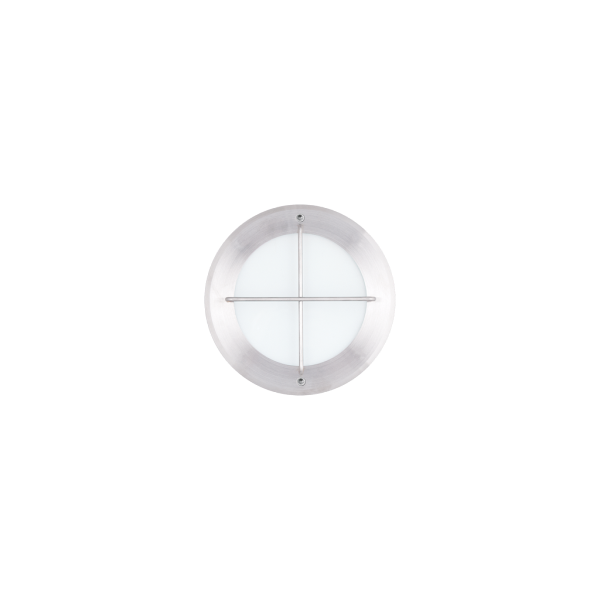

7" Round Interior/Exterior Step Light with Stainless Steel Faceplate & Lens Guard
*This product is Temporarily Unavailable*
The
FCSL407
Step Light is a 7.125" round stainless steel luminaire with protective guard over opal lens. It’s U.L. listed for interior and exterior wet location applications. The housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum, that’s constructed with (2) 7/8" KO. Back boxes can be used for concrete pour and masonry applications. We offer the back boxes to be shipped early for concrete pour application setup. The marine grade stainless steel face plate gives a polished look while providing a long lasting finish and protective lens guard. The white lens is 1/8" thick, tempered, heat resistant glass and adds a softer illumination reducing glare.
IES
IES Downloads
STEPLIGHT_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCSL400ii.pdf
Spec Sheet
Spec Sheet Downloads
FCSL407.pdf
FEATURES & BENEFITS
Performance
600 lm (17W Max)
Mounting Options
Concrete pour standard. Use DWR accessory for drywall applications.
Power Input
UNV 120 - 277 VAC
Protection
IP65 Rated
Warranty
5-Year Limited Warranty
