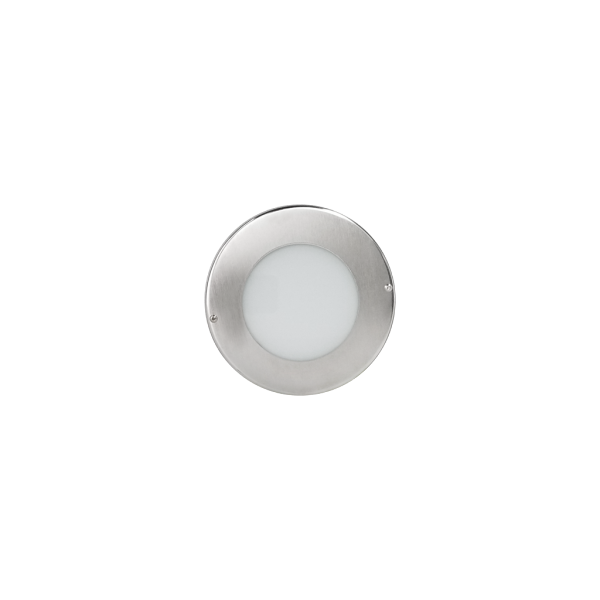

FCSL403
7" Round Step Light with Stainless Steel Faceplate
*This product is Temporarily Unavailable*
The FCSL403 Step Light is a 7.125" round stainless steel fixture with an opal lens. It's U.L. listed for interior and exterior wet location applications. The housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum, that's constructed with (2) 7/8" KO. Back boxes can be used for concrete pour and masonry applications. We offer the back boxes to be shipped early for concrete pour application setup. The marine grade stainless steel face plate gives a polished look while providing a long lasting finish. The white lens is 1/8" thick, tempered, heat resistant glass and adds a softer illumination reducing glare.
IES
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCSL403
FCSL403
FCSL403FCSL403

FEATURES & BENEFITS


Performance
750 lm (17W Max)

Mounting Options
Concrete pour standard. Use DWR accessory for drywall applications.

Power Input
UNV 120 - 277 VAC

Protection
IP65 Rated

Warranty
5-Year Limited Warranty
