FCD601
6" Round Low-Profile Recessed

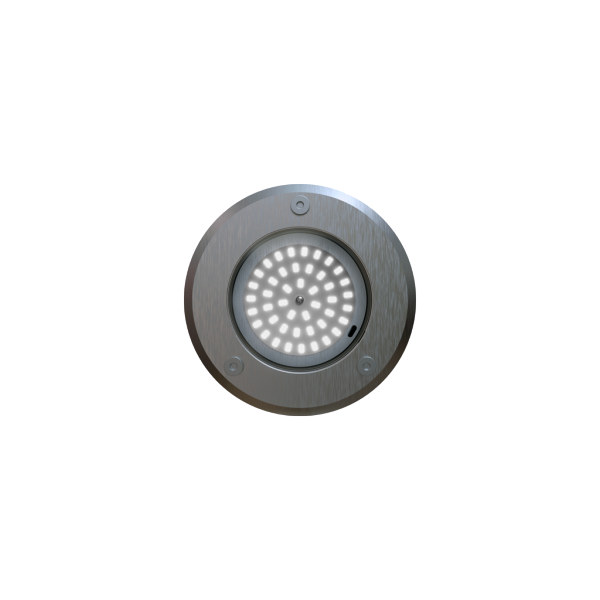

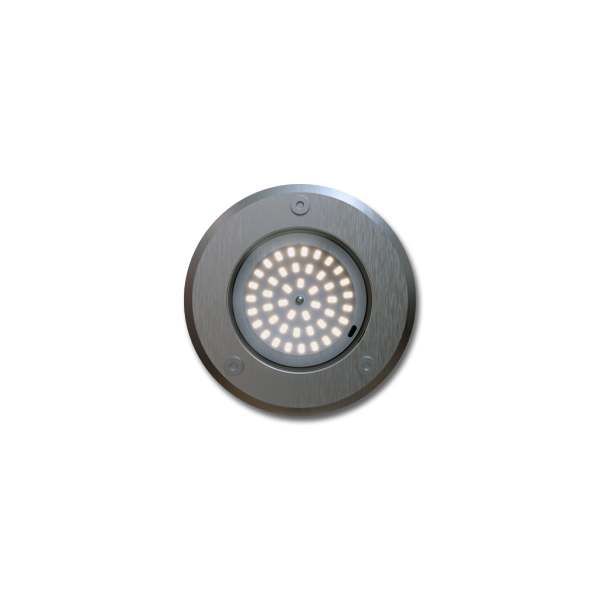

FCD601 Inground is a 6-inch round stainless steel recessed luminaire. It's ETL Listed for interior and exterior wet locations. The faceplate trim is 316 machined stainless steel and the housing is Marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction. Sealed with an extruded silicone gasket to provide maximum protection against contaminants. The standard lens is 3/8" thick tempered glass with white diffusion. Complete a concrete pour with the PVC sleeves to help water management around the luminaire and to secure the luminaire in place. The FCD601 has an integral power supply which is standard. It has a universal Input voltage of 120 - 277 VAC, and delivers 380 lumens using only 6 watts. Available CCTs of 27K, 3K, 35K, 4K, with a 90CRI option if needed. Consult factory for dimming and any single color options. Add the elegance and durability of stainless steel to your lighting package. Also, offered with a Slip Resistant Etched Lens (SR). See all FC Lighting Inground luminaires. See Linear Outdoor products.
IES
IES Downloads
Install Instructions
Install Instructions Downloads
Spec Sheet
Spec Sheet Downloads
FCD601
FCD601
FCD601FCD601

FEATURES & BENEFITS


Performance
380 lm (6W)

Mounting Options
Concrete pour with PVC accessory

Power Input
120 VAC
277 VAC

Protection
IP67 Rated

Warranty
5-Year Limited Warranty
