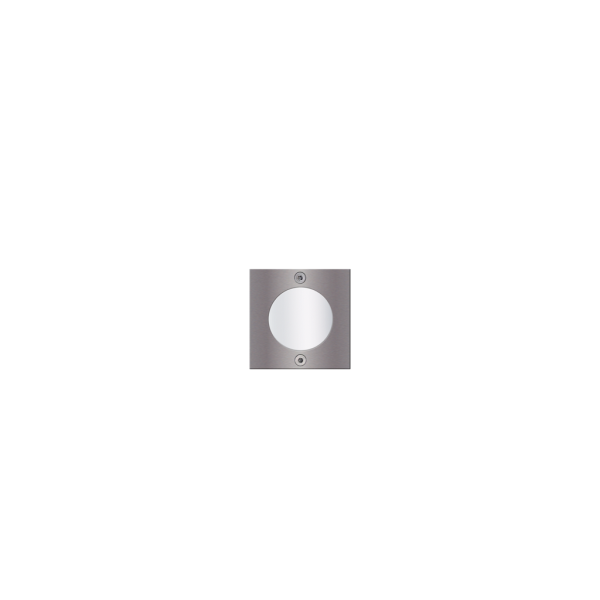

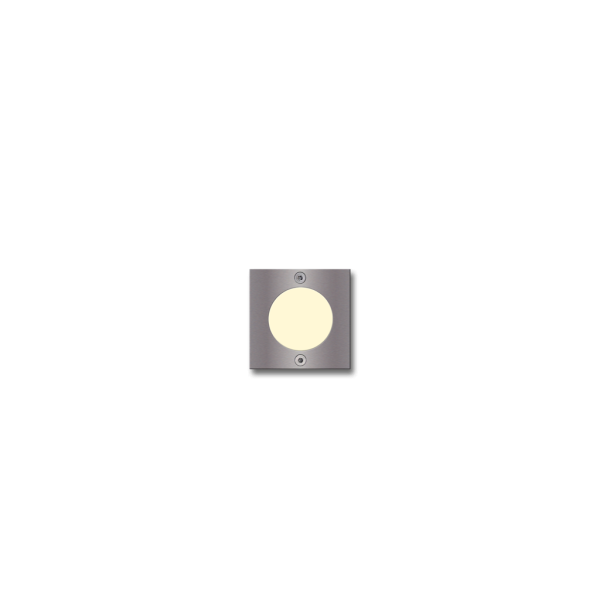

FCD24S
2" Square Stainless Steel Recessed
FCD24S
Inground Luminaire is Marine grade, corrosion resistant, heavy walled, high pressure die-cast aluminum construction with a 316 machined brushed stainless steel faceplate. Lens is 3/8" thick clear tempered, standard. Extruded silicone to provide maximum protection against contaminants. Slips into PVC housing and is pressed in to create a seal. UL & cUL listed for wet locations. All of our luminaires are tested to LM 80 with a CRI of 80+ and color consistency of 4 SDCM. Input 120 VAC standard. Consult factory for dimming and any non-white static color LED options.
IES
IES Downloads
INGROUND_IES_Data.zip
Install Instructions
Install Instructions Downloads
FCD24R-FCD24Sii.pdf
Spec Sheet
Spec Sheet Downloads
FCD24S.pdf
FEATURES & BENEFITS
Performance
100 lm (4W)
Mounting Options
Slips into PVC housing and is pressed in to create a seal.
Power Input
120 VAC
Protection
IP67 Rated
Warranty
5-Year Limited Warranty
RELATED PRODUCTS
FCD7000
Performance
1200 lm (11W)
Power Input
UNV 120 - 277 VAC
120 VAC
277 VAC
FCD7001
Performance
2400 lm (20W)
Power Input
UNV 120 - 277 VAC
120 VAC
277 VAC
FCD7002
Performance
4000 lm (38W)
3080 lm (28W)
Power Input
UNV 120 - 277 VAC
120 VAC
277 VAC
FCD24R
Performance
100 lm (4W)
Power Input
120 VAC
FCD24S
Performance
100 lm (4W)
Power Input
120 VAC
FCD46R
Performance
300 lm (6W)
Power Input
UNV 120 - 277 VAC
FCD46S
Performance
300 lm (6W)
Power Input
UNV 120 - 277 VAC
FCD601
Performance
380 lm (6W)
Power Input
120 VAC
277 VAC
FCD609R
Performance
1300 lm (14W Max)
Power Input
120 VAC
277 VAC
FCD609S
Performance
1300 lm (14W Max)
Power Input
120 VAC
277 VAC
FCD803R
Performance
1300 (26W)
2000 (30W)
3000 lm (33W)
Power Input
UNV 120 - 277 VAC
FCD803S
Performance
1300 lm (26W)
2000 lm (30W)
3000 lm (33W)
Power Input
UNV 120 - 277 VAC
FCD803R-RGBW
Performance
1100 lm (All Col
Channels On)
Power Input
UNV 120 - 277 VAC
FCD803S-RGBW
Performance
1100 lm (All Col
Channels On)
Power Input
UNV 120 - 277 VAC
FCD1214R
Performance
2000 lm (25W)
Power Input
120 VAC
277 VAC
FCD1214S
Performance
2000 lm (25W)
Power Input
120 VAC
277 VAC
